Product Details:
Payment & Shipping Terms:
|
| Product Name: | ASTM D6770 LCD Display 400 Mm Roller Seat Belt Wear Test Machine | Load: | 2.3 ± 0.05 Kg |
|---|---|---|---|
| 2.3 ± 0.05 Kg: | ¢ 400 Mm | Driving Mode: | Motor Drive |
| Test Fixture: | 2 Groups, 3 Groups (depending On The Size Of The Ribbon) | Friction Angle: | 85 ± 2 ° |
| Test Run: | 300 ± 20 Mm | Test Speed: | 30 ± 2 Times / Min |
| Counting Method: | LCD Liquid Crystal Display | Hex Bar: | 6.35 ± 0.03 Mm, Chamfer 0.5 ± 0.1 Mm |
| Highlight: | impact test equipment,temperature test machine |
||

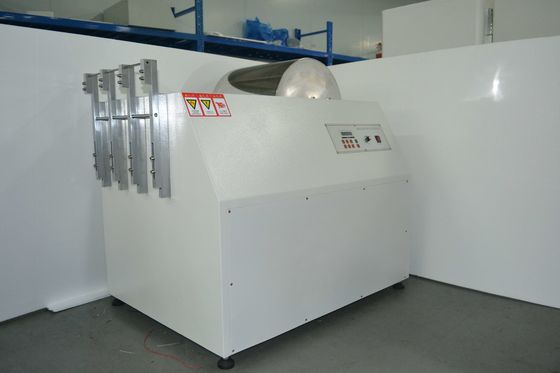

ASTM D6770 LCD Display 400 mm Roller Seat Belt Wear Test Machine
Introduction to the instrument:
Used to test a variety of ribbon, seat belt wear resistance.
Test principle:
So that the ribbon in the hexagonal bar on the two corners of the reciprocating friction on a certain number of times, observe the degree of wear and tear later to determine product quality.
Technical Parameters:
| Load | 2.3 ± 0.05 kg |
| Roller | ¢ 400 mm |
| Driving mode | motor drive |
| Test fixture | 2 groups, 3 groups (depending on the size of the ribbon) |
| Friction angle | 85 ± 2 ° |
| Test run | 300 ± 20 mm |
| Test speed | 30 ± 2 times / min |
| Counting method | LCD liquid crystal display |
| Hex bar | 6.35 ± 0.03 mm, chamfer 0.5 ± 0.1 mm |
| Volume | length 800 * width 750 * high 1230mm |
| Weight | about 260 kg |
| Power | AC220V, 50Hz |
Standard:
ASTM D6770 and other test standards
