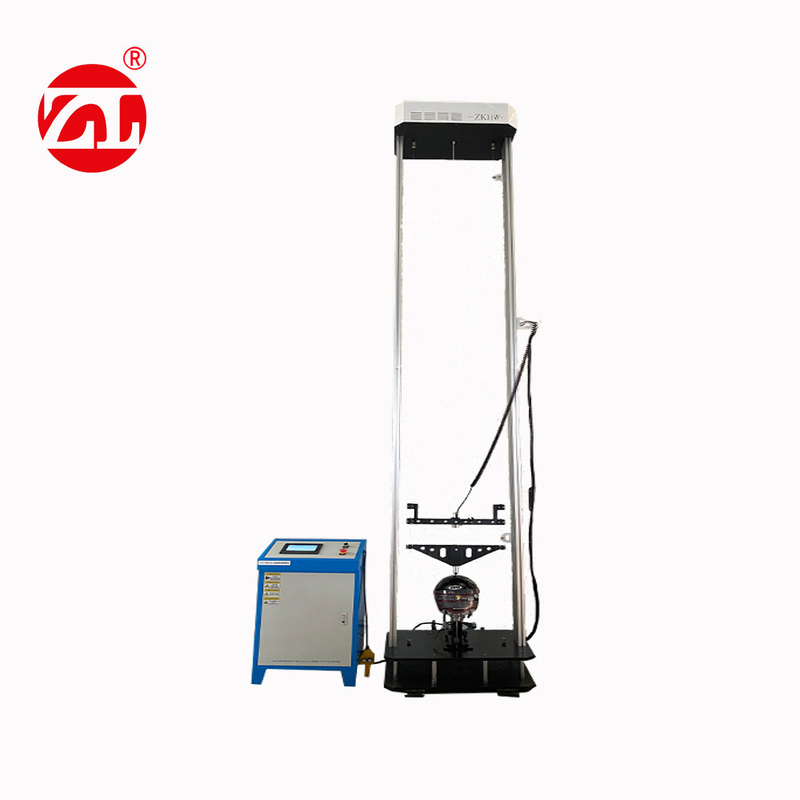

Motorcycle Helmet Resistance To Penetration Tester With NELLM2015 AS NZS 2063

Large Image : Motorcycle Helmet Resistance To Penetration Tester With NELLM2015 AS NZS 2063

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1814

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Motorcycle Helmet Resistance to penetration Tester With NELLM2015 AS NZS 2063 is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Motorcycle Helmet Resistance To Penetration Tester With NELLM2015 AS NZS 2063	Head Mold:	Full Head Mold And Half Head Mold
Puncture Steel Cone:	A Cylinder With A Mass Of 3kg, Hardness ≥50HRC	Impact Height:	0-3000mm, Self-setting.Specify Class A 3000mm, Class B 1000mm
Impact Speed:	The Falling Speed Of The Fixed Point Is Detected In Real Time And Displayed Digitally.	Standard:	GB811-2010
Used In:	Motorcycle Helmet Related Production, Scientific Research, Quality Supervision And Testing Units.	Key Words:	Full Or Half Helmet
Model:	ZL-1814A
Highlight:	3000mm Resistance To Penetration Tester , Motorcycle Helmet Resistance To Penetration Tester , Resistance To Penetration Helmet Testing Machine

Motorcycle Helmet Resistance To Penetration Tester With NELLM2015 AS NZS 2063

This professional testing equipment evaluates the puncture resistance of various helmet types including motorcycle helmets, sports helmets, electric vehicle helmets, firefighting helmets, rescue helmets, military and police helmets, and pilot helmets. Widely utilized by helmet manufacturers, research institutions, and quality supervision departments.

Application

Designed according to helmet production standards, this tester is primarily used to assess the puncture resistance performance of various protective helmets for quality assurance and compliance verification.

Key Features

Specialized test tooling allows easy switching between full-head and half-head testing configurations
Robust base construction with high impact strength and pre-drilled fixing holes for secure installation
Electrically controlled piercing steel cone with suction and release mechanism
Automatic alarm system activates when piercing cone contacts the head mold
Customizable impact height with real-time display and automatic stop at set height
Double guide structure ensures smooth descent of piercing steel cone
Adjustable head mold fixed base enables testing at different angles
180° rotatable high-strength protective cover for puncture area safety
Configurable for different standards and helmet types

Technical Parameters

Model	ZL-1814A
Head Molds	Full head die with head weights of 4kg, 5kg and 6kg respectively
Piercing Steel Cone	Tool steel construction, mass 3kg, hardness ≥ 50 HRC, cylinder with cone end diameter 25mm, cone tip radius 0.5mm, angle 60°, overall length > 40mm
Impact Height	0-1000mm/15000mm/3000mm (optional configurations)

Applicable Standards

ECE, EN, ASTM, JIS, SNELLM2015, AS/NZS 2063, GB811, GB24429, GJB1564A
