Electric Control Height Motorcycle Helmet Fixed Device Stability Tester

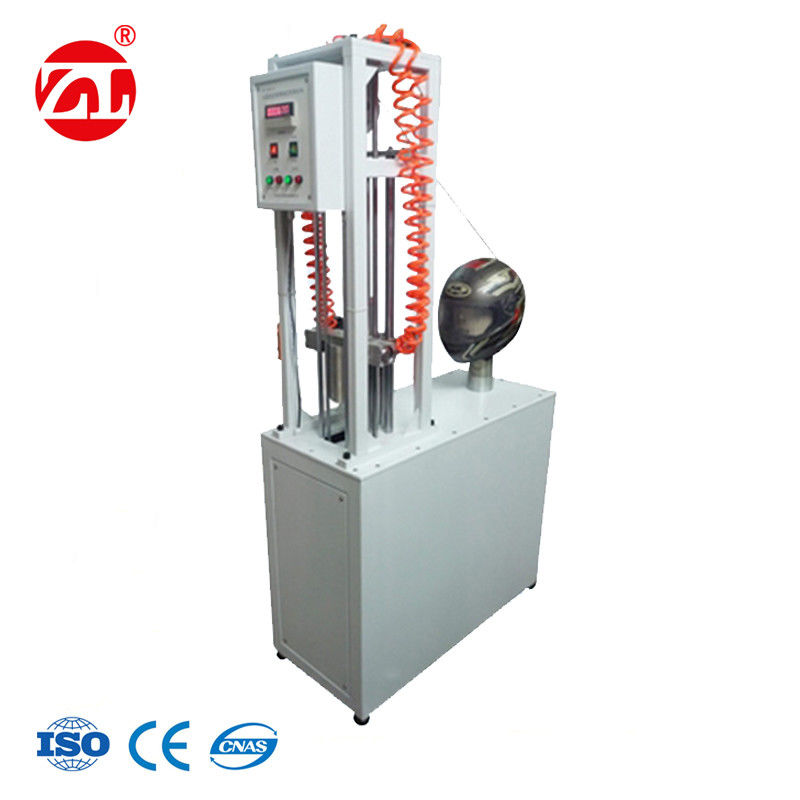

Large Image : Electric Control Height Motorcycle Helmet Fixed Device Stability Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1816

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Electric Control Height Motorcycle Helmet Fixed Device Stability Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Electric Control Height Motorcycle Helmet Fixed Device Stability Tester	The Headform Weight:	4kg, 5kg, 6kg And Other Three.
The Initial Weight:	3 ± 0.1kg.	Falling Weight:	10 ± 0.01kg.
Fall Height:	0.5±0.01m.	Fixed Pulley:	Φ100mm.
Pulley Height:	600mm Above The Head Reference Plane.	The Working Power:	220V 50HZ.
Highlight:	impact test equipment , temperature test machine

Electric Control Height Motorcycle Helmet Fixed Device Stability Tester

Product Overview

Designed for motorcycle helmet production according to GB811-2010 standards, this stability tester is primarily used for testing the fixture stability of motorcycle helmets. Widely utilized by motorcycle helmet manufacturers, research institutions, and quality supervision departments.

Key Features

Complete system includes frame body, headform, weights, guiding device, and release mechanism with compact structure and convenient operation
Configurable with small, medium, and large headforms to accommodate helmets of different sizes
Electric control system for weight pulling and release operations
Electronically controlled height adjustment capable of positioning at any height within operational range

Technical Specifications

Headform Weight	4kg, 5kg, 6kg (three options)
Initial Weight	3 ± 0.1kg
Falling Weight	10 ± 0.01kg
Fall Height	0.5 ± 0.01m
Fixed Pulley	Φ100mm
Pulley Height	600mm above head reference plane
Power Requirements	220V 50HZ

Test Result Criteria

According to GB811-2010 motorcycle helmet standards, the helmet fixing device stability must meet the following requirement: The helmet must not separate from the headform during testing.

Applicable Standards

GB811-2010
