GB811-2010 The Whole Door Structure Motorcycle Helmet Goggles Impact Tester

GB811-2010 The Whole Door Structure Motorcycle Helmet Goggles Impact Tester
GB811-2010 The Whole Door Structure Motorcycle Helmet Goggles Impact Tester

Large Image :  GB811-2010 The Whole Door Structure Motorcycle Helmet Goggles Impact Tester

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-1815
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: GB811-2010 The Whole Door Structure Motorcycle Helmet Goggles Impact Tester is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Detailed Product Description
Product Name: GB811-2010 The Whole Door Structure Motorcycle Helmet Goggles Impact Tester Punch Quality: 0.3kg±10g
Perforator Cone Angle: 60 ° ± 1 ° Perforator Cone Tip Radius: 0.5mm
Drop Weight: 3kg ± 25g Impact Height: 1000mm ± 5mm
Headform Weight: 4kg, 5kg, 6kg And Other Three. Working Power: 220V 50Hz
High Light:

impact test equipment

,

temperature test machine

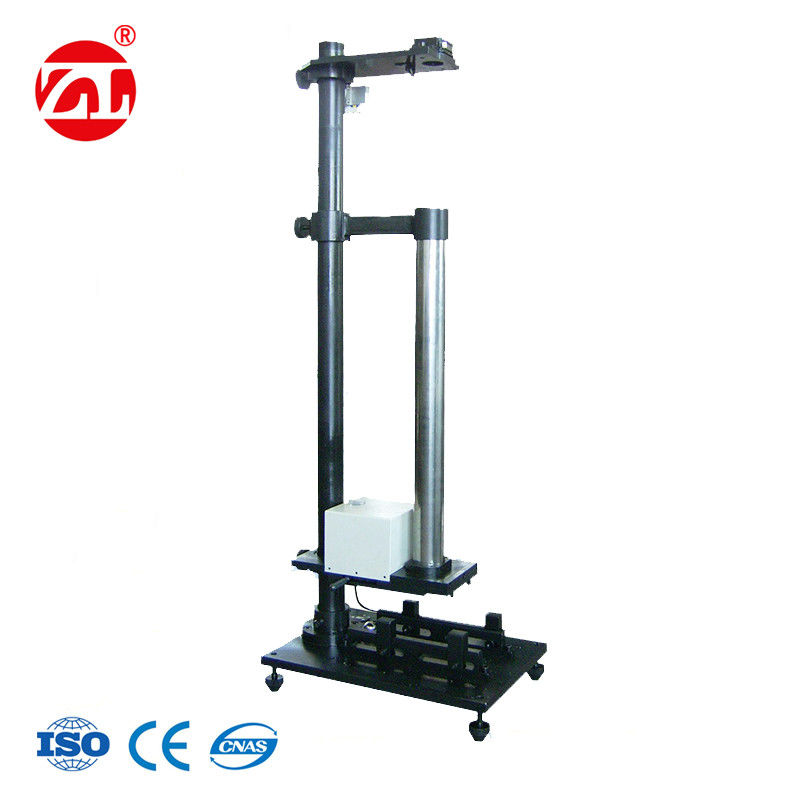

GB811-2010 The Whole Door Structure Motorcycle Helmet Goggles Impact Tester





Main purpose



According to the production of motorcycle helmet GB811-2010, it is mainly used to test the impact strength performance of motorcycle helmet's goggles. Widely used in motorcycle helmet related production, scientific research, quality supervision and testing and other units.



Main features



1. The whole door structure, to ensure the stability and reliability of the equipment.

2. Drop hammer adopts electric control, automatically sucks and releases the drop.

3. The impact height can be adjusted by hand wheel rotation vertical lifting screw.

4. The drop hammer adopts vertical lifting structure to ensure that it is always directly above the puncher.

5. The configuration of small, medium, large and other three different head mold, helmets of different sizes for testing.



Main indicators



Punch quality 0.3kg±10g
Perforator cone angle 60 ° ± 1 °
Perforator cone tip radius 0.5mm
Drop weight 3kg ± 25g
Impact height 1000mm ± 5mm.
Headform weight 4kg, 5kg, 6kg and other three.
Working power 220V 50Hz



Results of the decision



According to the provisions of GB811-2010 motorcycle member helmet, helmet goggle impact should meet:If the goggles are broken, the debris cannot be less than 60°.



Applicable standards



GB811-2010
