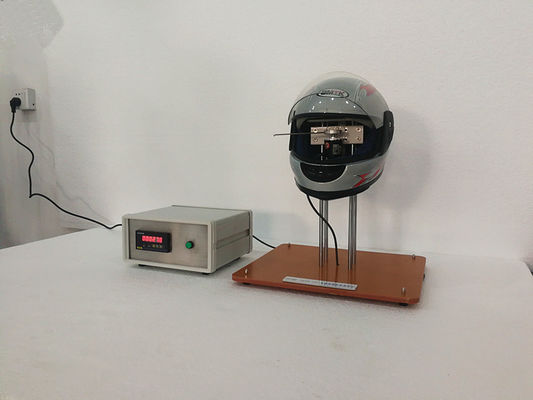

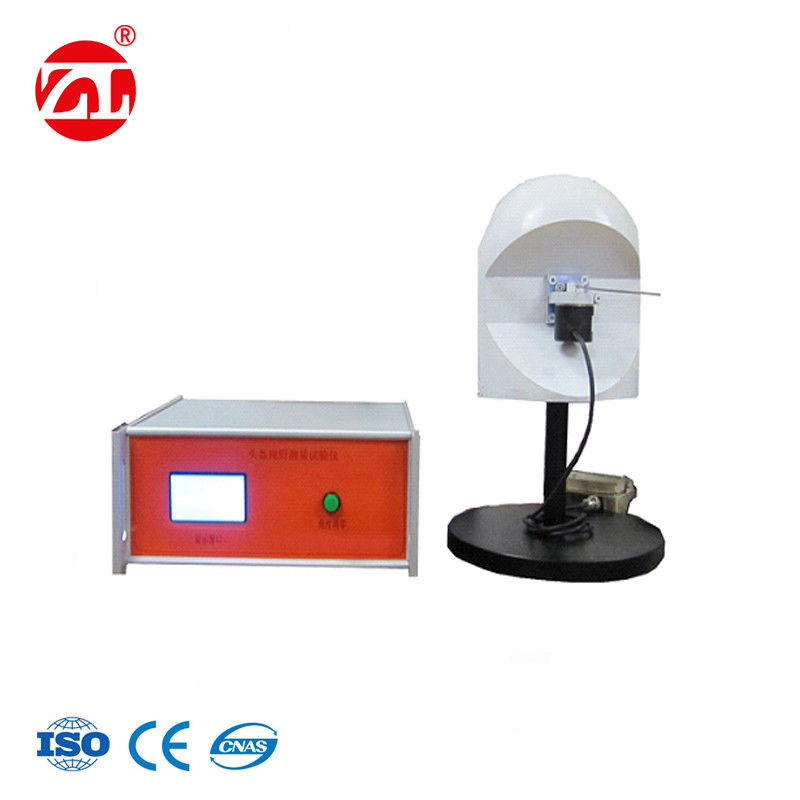

GB811-2010 Motorcycle Helmet Vision Meter With Composite Pointer

Large Image : GB811-2010 Motorcycle Helmet Vision Meter With Composite Pointer

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1812

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	GB811-2010 Motorcycle Helmet Vision Meter With Composite Pointer is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	GB811-2010 Motorcycle Helmet Vision Meter With Composite Pointer	The Horizon Of The Left And Right Horizon:	± 150 °
Vertical Range Of Vision:	± 90	Field Of View Resolution:	1 °
Working Power:	220V, 50Hz	Applicable Standard:	GB811-2010
Highlight:	impact test equipment , temperature test machine

GB811-2010 Motorcycle Helmet Vision Meter With Composite Pointer

Product Overview

Designed according to motorcycle helmet GB811-2010 production standards, this vision meter is primarily used to test the visual field of motorcycle helmets. It is widely utilized by motorcycle helmet manufacturers, research institutions, quality supervision departments, and testing facilities.

Key Features

Headform fixed base and head mold utilize jack-type linkage for convenient and rapid head model changes
Composite pointer enables easy testing of horizontal horizon and upper/lower vision fields
LED digital display for angle scales provides real-time viewing of visual field data
Specially processed headforms ensure quick and convenient visual field testing according to standards

Technical Specifications

Specification	Value
Horizontal field of view (left/right)	±150°
Vertical field of view	±90°
Field of view resolution	1°
Working power	220V, 50Hz

Compliance Requirements

According to GB811-2010 motorcycle helmet standards, helmet vision must satisfy:

Left and right horizontal vision of the helmet is not less than 105°
Upper field of view of the helmet is not less than 7°
Lower field of view of the helmet is not less than 45°

Applicable Standard

GB811-2010
