Auto - Ignition & Automatic Timing Safety Helmet Testing Machine / Fire Retardant Tester

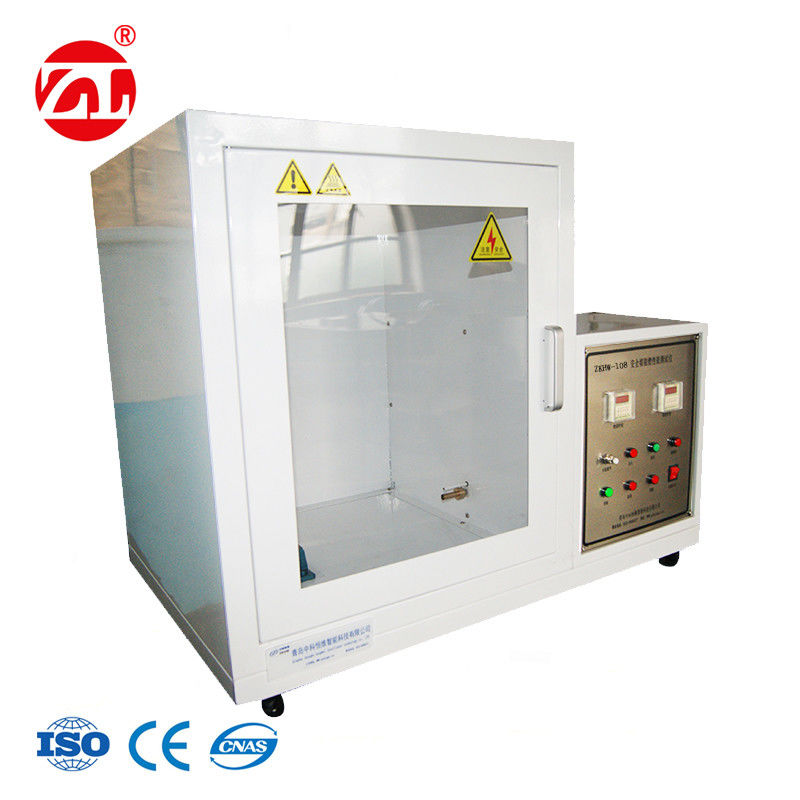

Large Image : Auto - Ignition & Automatic Timing Safety Helmet Testing Machine / Fire Retardant Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1808

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Safety Helmet Fire Retardant Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Safety Helmet Fire Retardant Tester	Flame Height:	50 ± 2mm, And A Flame Height Of 50mm Ruler.
Flame Spray Head:	Fuel Nozzle Horizontally Placed, Internal Diameter 10mm.	Power Supply:	220V 50HZ 100W.
Air Source:	Industrial Grade Methane (customer Self-provisioned)	Meet Standard:	GB/T2812-2006, GB 2811-2007
Highlight:	impact test equipment , temperature test machine

Auto-Ignition & Automatic Timing Safety Helmet Testing Machine / Fire Retardant Tester

Product Overview

Auto-ignition & Automatic Timing Safety Helmet Fire Retardant Tester designed for comprehensive safety helmet fire resistance testing according to national standards.

Main Purpose

According to helmet standards GB/T2812-2006 and GB 2811-2007, this machine is primarily used for safety helmet fire retardant testing. Widely applied in special labor protection supplies supervision and inspection stations, building science research institutes, construction quality inspection stations, power departments, and helmet manufacturing facilities.

Key Features

Burner pulse auto-ignition system
Automatic burner timing with automatic reset function
Automatic recording of afterburning time and smoldering time with digital display
Adjustable flame height with optional flame height gauge configuration

Technical Specifications

Component	Specification
Bracket	Firmly clamps helmet to ensure stable position during testing; adjustable distance between helmet and flame spray head
Timer	Indication error ±1%, range 0-999.9S, records continued burning time
Timer Task	Indication error ±1%, range 0-999.9S, determines flame application duration to helmet
Flame Height	50 ± 2mm, includes 50mm flame height ruler
Flame Spray Head	Fuel nozzle horizontally placed, internal diameter 10mm
Fuel Supply	Pressure regulator valve, gas volume control valve, and gas storage tank ensure stable ejection of 50mm blue flame
Power Supply	220V 50HZ 100W
Air Source	Industrial grade methane (customer self-provisioned)

Applicable Standards

GB/T 2812-2006 "Helmet Test Method"
GB/T 2811-2007 "Helmet"
