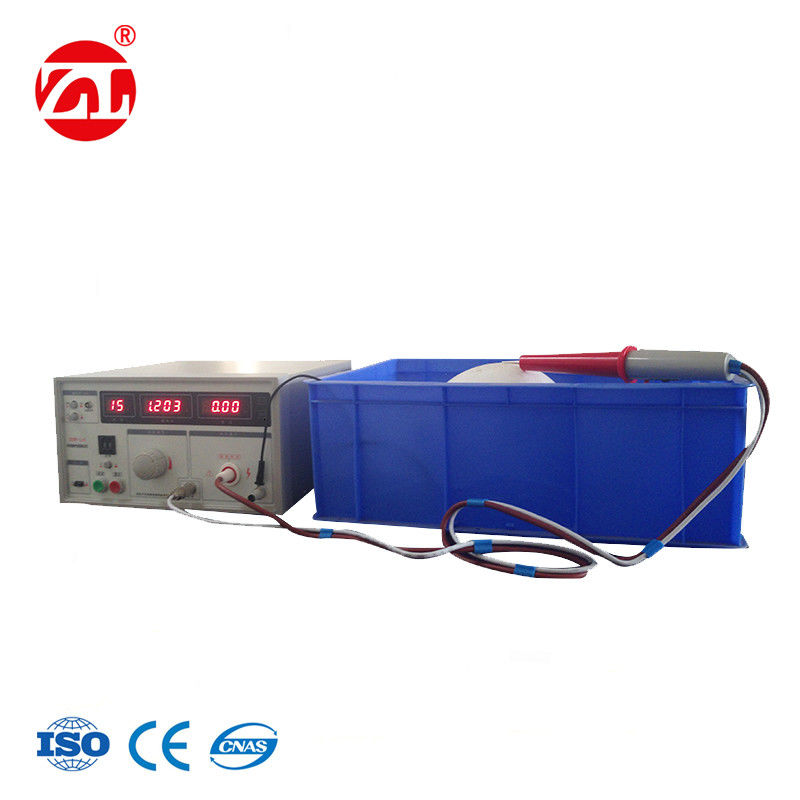

Three - Window LED Display Safety Helmet Testing Machine Electrical Insulation Tester

Large Image : Three - Window LED Display Safety Helmet Testing Machine Electrical Insulation Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1804

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Three - window LED Display Safety Helmet Electrical Insulation Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Product Name:	Safety Helmet Electrical Insulation Tester	Voltage:	0-5000V Adjustable
Indication Error:	1%	Timing:	0-99S
Probe:	Diameter 4mm, The Top Is Hemispherical.	Power:	220V 50Hz
Highlight:	impact test equipment , temperature test machine

Three-Window LED Display Safety Helmet Testing Machine Electrical Insulation Tester

Product Overview

The Three-Window LED Display Safety Helmet Electrical Insulation Tester is designed for comprehensive safety helmet testing according to national standards.

Main Purpose

Developed in compliance with helmet standards GB/T2812-2006 and GB 2811-2007, this machine is primarily used for safety helmet electrical insulation testing. Widely utilized by special labor protection supplies supervision and inspection stations, building science research institutes, construction quality inspection stations, power departments, and helmet manufacturers.

Key Features

Three-window LED display simultaneously shows test voltage, leakage current, and test time
User-configurable test time with automatic test termination when time expires
Customizable leakage current alarm value with automatic voltage cutoff and audible/visual alarm when exceeded

Technical Specifications

Parameter	Specification
Voltage	0-5000V, self-adjustable Standard requirement: 1200V ± 25V Indication error: 1%
Timing	0-99S Standard requirement: 15S Indication error: 1%
Current	0-2mA or 0-20mA Indication error: 1%
Probe	Diameter 4mm, hemispherical tip
Power	220V 50Hz

Applicable Standards

GB/T 2812-2006 "Helmet Test Method"
GB/T 2811-2007 "Helmet"
