High Stiffness High Flatness Precision Drop Tester Packaging Testing Equipment For Process of Carrying

High Stiffness High Flatness Precision Drop Tester Packaging Testing Equipment For Process of Carrying
High Stiffness High Flatness Precision Drop Tester Packaging Testing Equipment For Process of Carrying High Stiffness High Flatness Precision Drop Tester Packaging Testing Equipment For Process of Carrying High Stiffness High Flatness Precision Drop Tester Packaging Testing Equipment For Process of Carrying High Stiffness High Flatness Precision Drop Tester Packaging Testing Equipment For Process of Carrying

Large Image :  High Stiffness High Flatness Precision Drop Tester Packaging Testing Equipment For Process of Carrying

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-1615
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: High Stiffness High Flatness Precision Drop Tester Packaging Testing Equipment For Process of Carrying is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Detailed Product Description
Product Name: High Stiffness High Flatness Precision Drop Tester Packaging Testing Equipment For Process Of Carrying Max Load (kg): 200kg, 300kg
Working Condition: 25°± 3°,55~85% RH Max Size Of Testing Sample: 1200*1200*1200mm
Max. Base Size: 2300*2200*60mm Testing Way: Edge, Side, Corner
Power Consumption: 2.5 (KVA) Power Supply: AC 380V ,15Aor Specified By User
High Light:

paper test equipment

,

carton bursting tester

High Stiffness High Flatness Precision Drop Tester Packaging Testing Equipment For Process of Carrying





Application:



This machine is to evaluate the anti-impact strength in the process of shipping and carrying.

ZL-1615 Precision Drop Tester.pdf

Specification:



Model RS-DP-P-10 RS-DP-P-12 RS-DP-P-14
Max Load (kg) 200kg 200kg 300kg
Dropping height range (mm) 0~1000mm 0~1200mm 0~1400mm
Max size of testing sample L(mm) 1000 1200 1200
W(mm) 1000 1200 1200
H(mm) 1000 1200 1200
Base size L(mm) 1900 1900 2300
W(mm) 1600 1800 2200
H(mm) 60 60 60
Testing way Edge, side, corner

Size of

Testing support table

L(mm) 1900 1900 2300
W(mm) 1800 1800 2200
H(mm) 2800 3100 3400
Machine weight (kg) 2400 2800 3400
Power consumption (KVA) 2.5
Power supply AC 380V ,15Aor specified by user
Working condition 25°± 3°,55~85% RH




Specialties:

1. Testing support table adopts double track, and oil-pressure ascending system and the height is shown by digital display.



2. Base board:(Impact side)High stiffness,high flatness,the deformation will not beyond 0.1mm on any 100 mm2 area of the base board where load with 10kg static weight.



3. It can test the package edges, sides and corners at very low testing height, the testing height can be started from zero.



4. It is suitable for drop testing of the bigger size package, easy and fast for loading and unloading the testing samples on the support table.



5. Ascending and descending control device: The dropping height is shown by digital display.The difference between real dropping height and digital display height is within +/-2%.The dropping height is defined as the distance between the lowest point of testing sample before dropping and the impacted table.

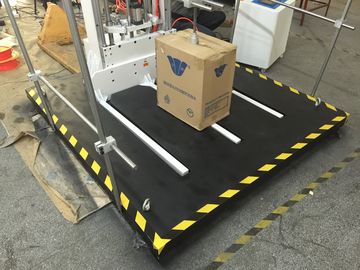

High Stiffness High Flatness Precision Drop Tester Packaging Testing Equipment For Process of Carrying 0

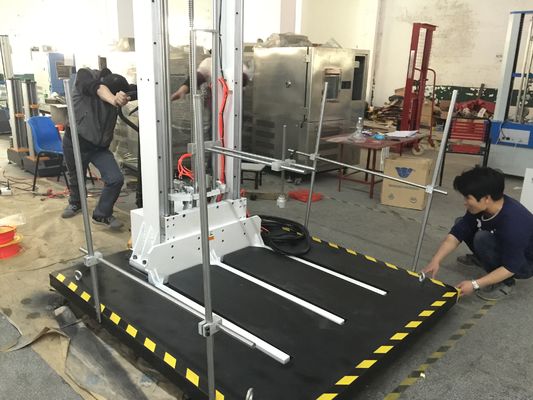

High Stiffness High Flatness Precision Drop Tester Packaging Testing Equipment For Process of Carrying 1
