300-1500 Mm Package Drop Testing Machine , Single - Wing Type Drop Test Apparatus

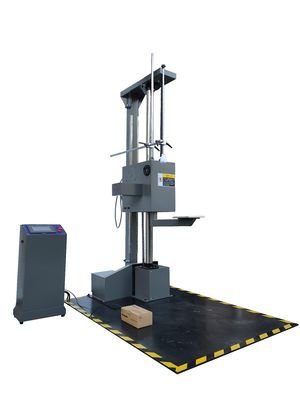

Large Image : 300-1500 Mm Package Drop Testing Machine , Single - Wing Type Drop Test Apparatus

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1616A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Single-wing Type Drop Test Apparatus is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Package Drop Testing Machine , Single-wing Type Drop Test Apparatus	Test High:	300~1500mm
Max Load Of Specimen:	100Kg	Max Size Of Specimen:	600600800mm
Bottom Size:	1700120020MM	Drop Error:	±5mm
Drop Plane Error:	〈1°	Power:	1∮220V
Highlight:	paper test equipment , carton bursting tester

300-1500 mm Package Drop Testing Machine, Single-wing Type Drop Test Apparatus

Equipment Overview

This machine is designed to test the damage and impact resistance of packaged products through free fall testing. It can evaluate packaging containers from various angles and surfaces, primarily used to assess the ability of product packaging components to withstand drops during transport and loading operations, thereby helping to improve and perfect package design.

Applicable Industries

Suitable for factories, enterprises, technical supervision departments, commodity inspection authorities, research institutes, and other organizations involved in testing and research activities.

Technical Specifications

Parameter	Specification
Model	ZL-1616A (Single-wing)
Test Height	300~1500mm
Maximum Load Capacity	100Kg
Maximum Specimen Size	600600800mm
Bottom Size	1700120020MM
Drop Error	±5mm
Drop Plane Error	<1°
Power Supply	1∮220V
Dimensions	1570×1000×2050 mm (L×W×H)

Product Image
