|Product Name:||30T Automatic Resist Bending Compression Testing Machine||Max Load KN:||300KN|
|Test Force Resolution:||0.01kN||Error Loading Speed:||±5%|
|Pump Rated Flow:||1.52L/min||Piston Diameter:||φ130mm|
|Piston Stroke:||60mm||Motor Power:||3 Phase 0.75 KW|
tensile test machine,
tensile strength testing machine

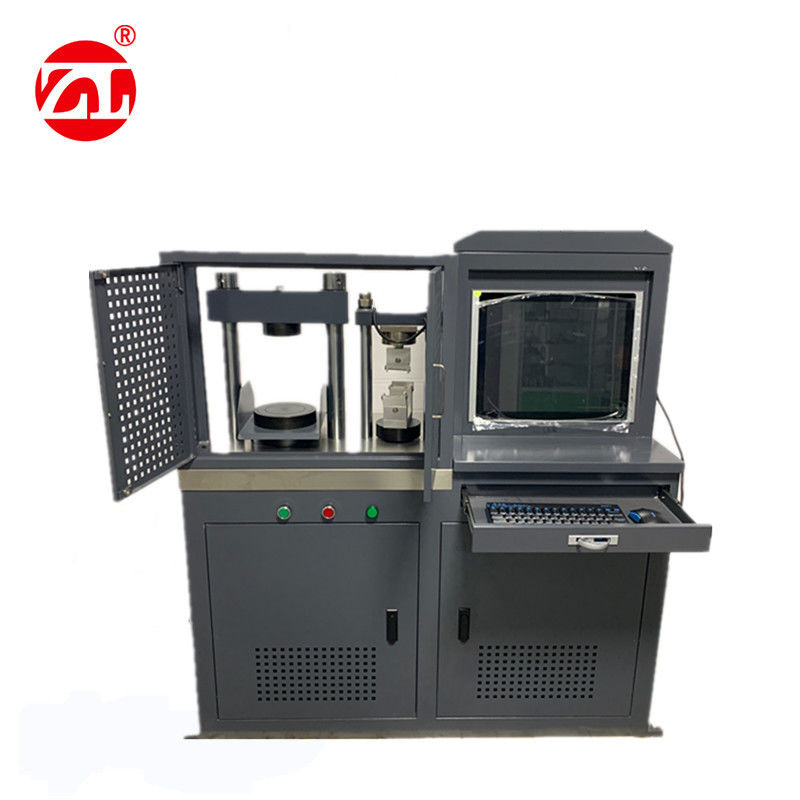

30T Computerized Automatic Resist Bending Compression Testing Machine
ZL-8013 is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test.
System including digital servo valve, high-precision sensors, controllers and software, high control precision and reliability. Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.
The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure filter, pressure valve, servo valve, into the cylinder. Computer control signals to the servo valve, Control direction and opening of the servo valve, to control the flow into the cylinder, achieve constant test force control.
Safety protection device:
When the test force more than 3% of the maximum test force, the overload protection, oil pump motor shut down.
System has the following functions:
Main performance technical specifications:
|Max load KN||300KN|
|Test force measuring range KN||4%-100%FS|
|Test Force showed the relative error||≤indicating value±1%|
|Test Force Resolution||0.01kN|
|Hydraulic pump rated pressure||25MPa|
|Error loading speed||±5%|
|Pump rated flow||1.52L/min|
|Upper and lower bearing plate size||φ155mm|
|Maximum distance between the upper and lower plate||260mm|
|Motor Power||3 phase 0.75 kW|
|Outside dimension mm||870×450×1400mm|
