IS02759 ASTMD3786 Ring Crushing Strength Testing Machine PLC Control

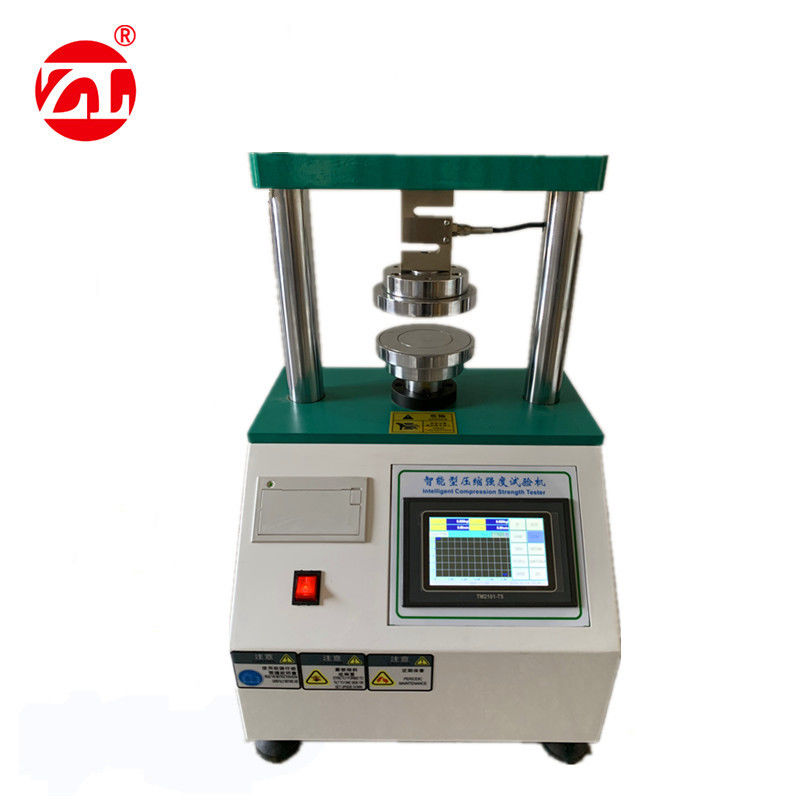

Large Image : IS02759 ASTMD3786 Ring Crushing Strength Testing Machine PLC Control

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-9003

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Ring Crushing Strength Testing Machine（PLC control) is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Ring Crushing Strength Testing Machine （PLC Control）	Resolution:	1/250,000
Precision:	< 0.25%	Display Mode:	LED
Compressed Space:	500mm	Test Speed:	12.7 Mm/min
Weight:	Approx. 51 Kg	Power:	1ø, AC220V, 1.5A
Highlight:	paper test equipment , carton bursting tester

IS02759 ASTMD3786 Ring Crushing Strength Testing Machine PLC Control

Product Overview

The IS02759, ASTMD3786 Ring Crushing Strength Testing Machine with PLC control is designed for comprehensive compression testing of packaging materials including corrugated paper and kraft paper.

Applications

This testing machine is widely used to measure anti-breaking strength of packaging boxes across multiple industries:

Electronics and electrical appliances
Wires, hardware, and bicycles
Handbags, footwear, and clothing
Food packaging and furniture

Machine Description

This advanced testing instrument evaluates compression resistance of corrugated paper and kraft paper in upright direction under specific conditions. The equipment features:

Multiple testing capabilities including flat crush strength, compression resistance, and sticky degrees testing
High-precision load measurement system with direct digital display
Automatic maximum value recording for fracture strength analysis
Enhanced resolution with 100x improvement over needle display types

Compliance Standards

This testing machine meets the following international standards:

IS02759
GB/T1539, QB/T1057
ASTMD3786
GB/T6564, GB/T465
TAPPI-T472; T808, T810, T811, T818
JIS-P8126
GBT2679.6, GBT2679.8, GBT2679.17

Technical Specifications

Parameter	Specification
Capacity (Optional)	10, 20, 50, 100, 200 kg
Resolution	1/250,000
Precision	< 0.25%
Display Mode	LED
Platen	100×100 mm or depending on sample diameter
Compressed Space	500mm
Platen Parallelism	± 0.05 mm
Ring Crush Sample	152×12.7 mm
Edge Crush Sample	25×100 mm
Test Speed	12.7 mm/min
Dimension (L×W×H)	790×510×1060 mm
Weight	Approx. 51 kg
Power	1ø, AC220V, 1.5A

Available Test Configurations

Side Pressure Strength Test: Ring Crush Tester + Parallel cutting knife + Side pressure counselling piece
Ring Crush Strength Test: Ring Crush Tester + Ring crush sampler + Ring crush fixture
Bonding Strength Test: Ring Crush Tester + Hood strength stripping frame
Flat Crush Strength Test: Ring Crush Tester + Flat crush sampler

Product Images
