LCD Digital Display Digital Six Stalls Paper Moisture Meter High Frequency Principle

LCD Digital Display Digital Six Stalls Paper Moisture Meter High Frequency Principle
LCD Digital Display Digital Six Stalls Paper Moisture Meter High Frequency Principle

Large Image :  LCD Digital Display Digital Six Stalls Paper Moisture Meter High Frequency Principle

Product Details:
Place of Origin: CHINA
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-9024
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Paper Moisture Meter -high Frequency Principle is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets / month
Detailed Product Description
Product Name: Paper Moisture Meter -high Frequency Principle Test Range: 0% ~ 40%
Work Environment: -5 ~ +60°C Display: Four Figures LCD Digital Display
Accuracy: 0.50% Penetrating Depth: 50mm
High Light:

paper test equipment

,

carton bursting tester

Digital Six Stalls Paper Moisture Meter-high Frequency Principle



Specifications

Paper moisture meter, uses high-frequency principle and digital meter for testing moisture,has six stalls



Introduction

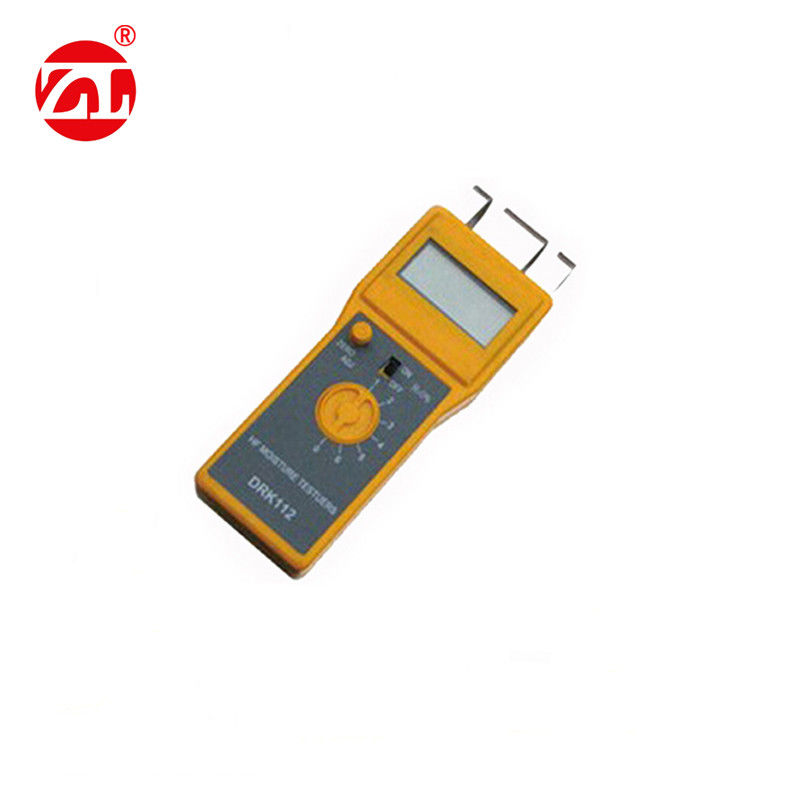

DRK112 Paper Moisture Meter is a digital moisture meter with high-performance adopting advanced foreign technology. The meter uses high-frequency principle. It integrates sensor and mainframe with figure display and has six stalls to test the moisture of various papers, cardboard, corrugated paper and carton.



Characteristics



Large testing range, high accuracy, and small dimension, light and portable for spot testing. It is the ideal instrument in the production process of papermaking.



Application



Appling in testing the moisture of various papers, cardboard, corrugated paper and carton.

It can test on paper winding machine and paper stack directly.



Standards



There is an inherent frequency in the meter; different samples with different moisture so the frequency will be different. The D-value between the frequency and inherent frequency will convert electricity by frequency-to-current converter, and then convert to LCD digital display by A/D converter.



Parameters



Items Parameters
Test Range 0% ~ 40%
Work Environment -5 ~ +60°C
Display Four figures LCD digital display
Accuracy 0.50%
Penetrating depth 50mm
Species correction 6 species of switch (geometrical method)
Power Supply 9V Battery (6F22)
Instrument Size 165mm×60mm×27mm
Weight 0.2Kg
