ISO3034 GB6547 Power Corrugated Plate Thickness Tester Digital Display

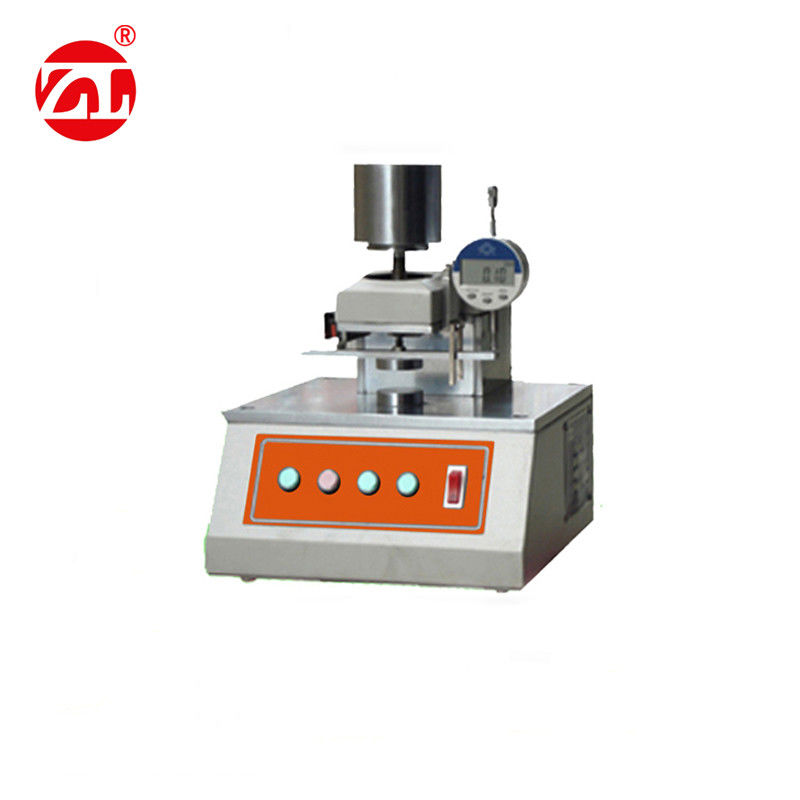

Large Image : ISO3034 GB6547 Power Corrugated Plate Thickness Tester Digital Display

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-9011

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Power Corrugated Plate Thickness Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 sets / month

Contact Now

Detailed Product Description

Product Name:	Power Corrugated Plate Thickness Tester	Measurement Range:	(0~18)mm
Sub-scale Value:	0.01mm	Indication Accuracy:	(200±5)mm2
Measurement Of Contact Area:	(1000±20)mm2	Measurement Of Contact Pressure:	(20±0.5)k Pa
Measuring The Speed Of Drop:	≤3mm/s	Measuring Frequency:	4 Times/Min
Highlight:	paper test equipment , carton bursting tester

ISO3034 GB6547 Power Corrugated Plate Thickness Tester Digital Display

Product Overview

ZL-9011 Power Corrugated Plate Thickness Tester (Digital Display) is a specialized instrument for measuring the electrical thickness of corrugated board. This apparatus features high measurement accuracy and easy operation, making it an essential tool for quality control in corrugated board manufacturing.

Compliance Standards

The main technical indicators and performance parameters comply with ISO3034 "Corrugated Board - Determination of Thickness" and GB6547 "Determination of the Thickness of Corrugated Board" requirements.

Applications

This instrument serves as fundamental testing equipment for corrugated board and carton manufacturing facilities, scientific research units, and product quality supervision and inspection departments.

Technical Specifications

Parameter	Specification
Model	ZL-9011
Measurement Range	(0~18)mm
Sub-scale Value	0.01mm
Indication Accuracy	(200±5)mm²
Measurement Error	≤0.002mm
Indication Accuracy Details	Indication error ±0.0025mm or ±0.5%, Indication error σ0.05mm, Indication changes ≤0.05mm
Measurement Contact Area	(1000±20)mm²
Measurement Contact Pressure	(20±0.5)kPa
Parallelism Between Measuring Surfaces	≤0.035mm
Measuring Speed of Drop	≤3mm/s
Measuring Frequency	4 Times/Min
Dimensions (L×W×H)	263mm × 224mm × 420mm
Operating Temperature	20°C ±10°C
Power Supply	AC220V ±22V, 50Hz (Reliable grounded power supply required)

Operating Requirements

The instrument requires a clean working environment free from strong magnetic fields and strong motion/vibration.
