| Product Name: | Cardboard Pierce Strength Tester（Miro-computer Type） | Accuracy: | ≤ ± 0.5% |
|---|---|---|---|
| Measuring Range: | (1 ~ 48) J | Resolution: | 0.001J |
| The Head Pressure: | (100 ± 2) Kpa | (100 ± 2) Kpa: | Modular Integrated Thermal Printer |
| Dimensions: | 860 * 495 * 780 | Weight: | 110kg |
| High Light: | paper test equipment,carton bursting tester |
||

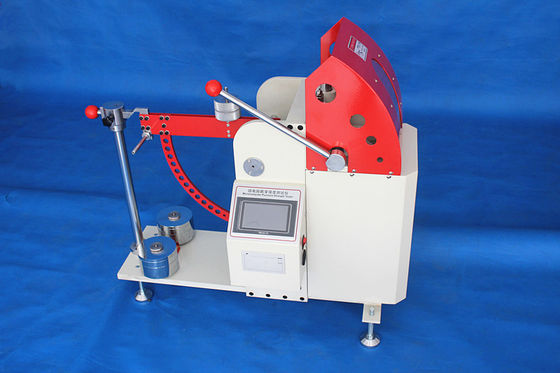

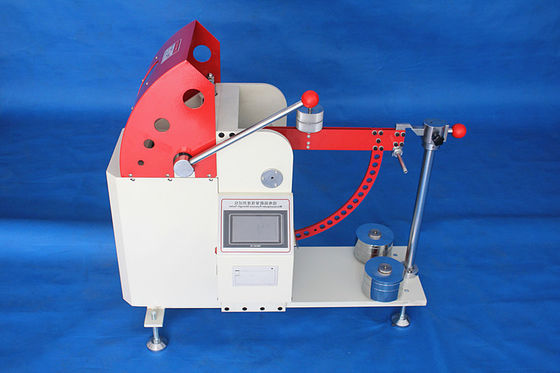

Fast Compression Cardboard Pierce Strength Tester( Miro-computer Type )
Product overview:
Microcomputer board puncture strength tester is corrugated board anti-puncture performance (ie, puncture strength) special test equipment. The board puncture strength tester with fast compression, operating handle automatic reset and safety reliability, with a liquid crystal display, thermal printer, etc., for a wide range cardboard carton production, research and inspection and other enterprises and sectors indispensable common instrument.
Board puncture strength testing machine technical parameters:
| Position | A <6J B <12J C <24J D <48J |
| Accuracy | ≤ ± 0.5% |
| Measuring range | (1 ~ 48) J |
| Resolution | 0.001J |
| The head pressure | (100 ± 2) kpa |
| Printout | Modular integrated thermal printer |
| Dimensions | 860 * 495 * 780 |
| Working environment | temperature (20 ± 10 ° C), humidity <85%, the horizontal panel |
| Weight | 110kg |
