Product Name: | Digital Fabric Water Permeability Tester | Power Source: | Ac 220V±10% 50HZ 200W |
---|---|---|---|
External Dimension: | 560×400×600mm | Weight: | 60kg |
Controller: | Computer Program-controlled,LCD Menu | Standard: | GB/T4744 FZ/T01004 AATCC 127 DIN 53886 JIS L1092 |
Highlight: | abrasion resistance testing machine,yarn twist tester |

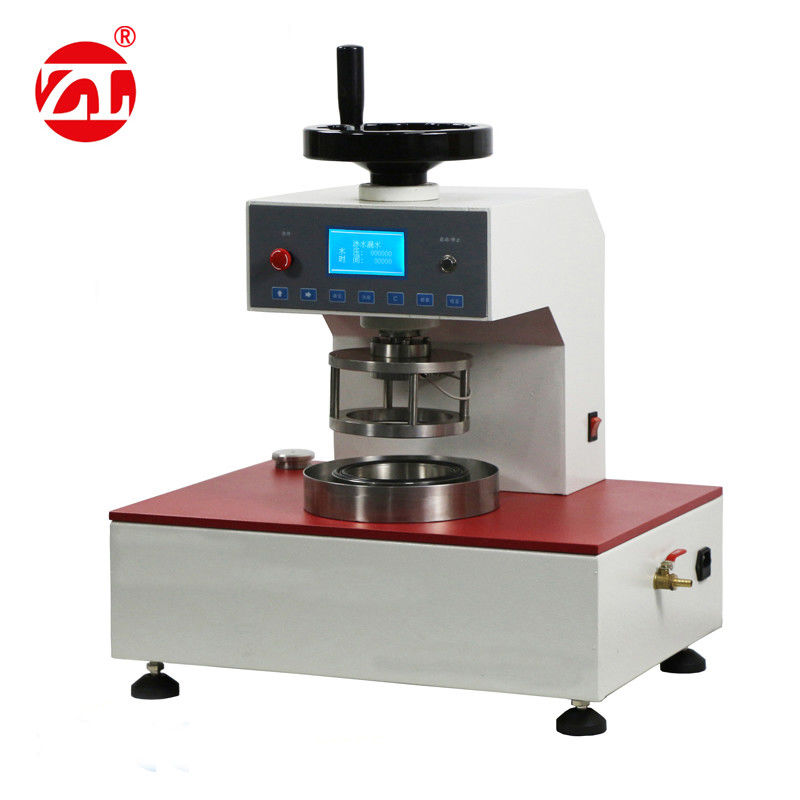

Pneumatic Clamp Digital Fabric Water Permeability Tester ,5 Sets of Testing Mode
Description Of Goods:
Relevant Standards
GB/T4744 FZ/T01004 AATCC 127 DIN 53886 JIS L1092
Applicable Range
Used for testing the water permeability of compact fabrics, including canvas, coated fabrics, cover cloth, rainproof clothing fabrics and geotextile materials, ect.
Testing mode
1.Constant pressure time
2.Constant pressure regularly
3.Turbocharged;
4.Leakage water method
5.Flexing resistance relaxation method;
Technical Specifications
model | Testing range | Water tank lifting speed | Area of specimen gripholder |
-5 | 500pa-50kpa | 1kpa-20kpa | 100cm2 |
-20 | 500pa-200kpa | 1kpa-30kpa | |
-50 | 5kpa-500kpa | 1kpa-100kpa | 8cm2 |
-100 | custom-made |
Technical parameters
Power source | Ac 220V±10% 50HZ 200W |
External dimension | 560×400×600mm |
Weight | 60kg |
Instrument characteristics
1.Computer program-controlled, LCD menu, built-in five sets of measurement mode
2.Built-in water tank design, original water rate balance system, with stable and accurate lifting speed
3.Pneumatic clamp
