Microcomputer Control Digital Sealing Tester Automatic Cleaning Uninstall

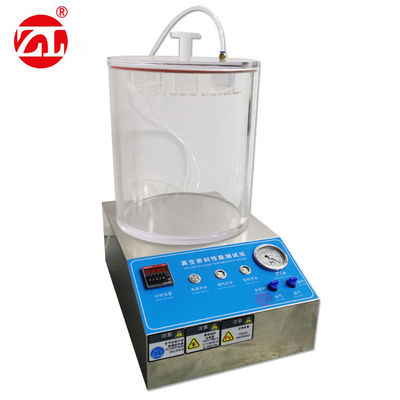

Large Image : Microcomputer Control Digital Sealing Tester Automatic Cleaning Uninstall

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-9025

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Sealing Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	80 sets / month

Contact Now

Detailed Product Description

Product Name:	Sealing Tester	Vacuum Degree:	0-90kPa
Air Pressure:	0.5Mpa - 0.7Mpa	Vacuum Hold Time:	0-60min
Vacuum Chamber Size:	Φ270mm×200 Mm (H)	Power Supply:	220V 50HZ
Highlight:	paper test equipment , carton bursting tester

Microcomputer Control Digital Sealing Tester Automatic Cleaning Uninstall

Microcomputer Control Digital Sealing Tester, Automatic Cleaning Uninstall

Brief Introduction

Suitable for sealing tests of food, drugs, cosmetics, and industrial products such as flexible packaging, bottle packaging, and packaging materials. The MFY-05 features negative pressure test mode, automatic timing, automatic replenishment, and fully automated high-precision inspection drain devices. This equipment effectively tests and evaluates sealing processes and performance by comparing flexible parts, and is widely used in food, plastic flexible packaging, wet wipes, pharmaceutical, cosmetic, and other industries for tightness testing.

Features

Microcomputer control with digital display of test vacuum degree
Digital preset test vacuum degree and vacuum hold time, ensuring test data accuracy
Uses high-quality system components for stable and reliable performance
Automatic constant air pressure ensures testing under preset vacuum conditions
Automatic constant pressure gas
Automatic trial completion
Automatic cleaning and uninstall

Test Principle

Through vacuum chamber evacuation, samples immersed in water generate external pressure. Observing gas escape from samples determines sealing properties. Alternatively, vacuum chamber evacuation creates internal and external pressure differences, causing sample expansion and shape recovery after vacuum release. Observing liquid infiltration determines sample sealing characteristics.

Technical Parameters

Vacuum Degree	0-90kPa
Air Pressure	0.5Mpa - 0.7Mpa
Vacuum Hold Time	0-60min
Vacuum Chamber Size	Φ270mm×200 mm (H)
Host Size	420mm(L)×320mm(B)×520mm(H)
Weight	9kg
Power Supply	220V 50HZ
