GB/T16491-1996 Microcomputer Economical Materials Testing Machine AC 220V

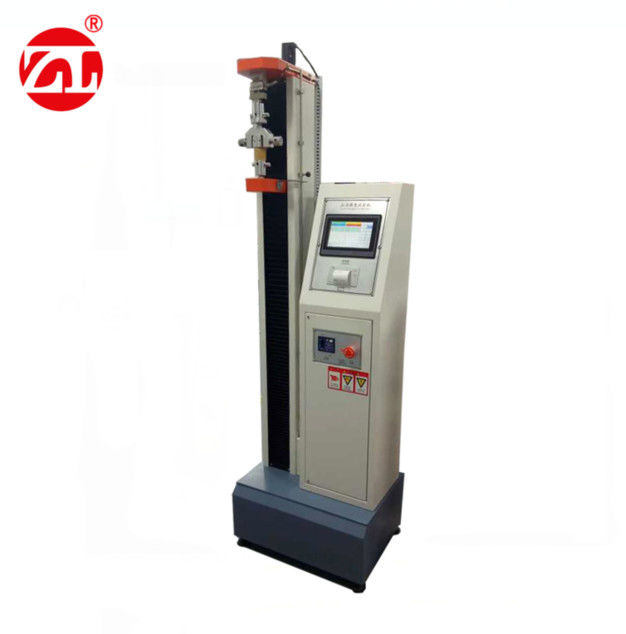

Large Image : GB/T16491-1996 Microcomputer Economical Materials Testing Machine AC 220V

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-8003A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Microcomputer Economical Material Testing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	Microcomputer Economical Material Testing Machine	Max. Load:	5KN
Max. Stroke:	800MM	Length Of The Pillar:	1000MM
Test The Rated Speed:	0.001～500mm/min	Dimension:	450×550×1400mm (H×W×D)
Weight:	About 150kg	Power:	AC 220V
Highlight:	tensile test machine , tensile strength testing machine

GB/T16491-1996 Microcomputer Economical Materials Testing Machine

Equipment Overview

ZL-8003A Microcomputer Economical Materials Testing Machine combines electronic technology with mechanical transmission for precise load speed control and force measurement. Featuring high accuracy and sensitivity for load and displacement measurement, this machine offers simple operation and compact design that allows direct placement on testing tables. Ideal for quality control in production lines, it's designed for testing both metallic and non-metallic materials with loads under 5KN.

Testing Capabilities

This machine performs comprehensive material testing including tensile, compression, bending, shear, peel, tear, and two-point extension tests (with extensometer). Suitable for quality control of textiles, rubber, plastics, synthetic leather, tape, adhesives, plastic film, composites, electronics, metals, and various other materials.

Key Features

Electrostatic spray finish for elegant appearance with multifunctional and economical design
Clear LCD digital force display with tension/compression discernibility
Multiple unit options: N, Kg, Lb, Ton with automatic conversion
Backlit LCD for operation in low-light environments
Single measurement recording for maximum tension and compression forces with automatic/manual zeroing
Automatic shutdown system for overload protection
Single-column structure offering sophisticated and economical design

Industry Applications

Widely used in wire and cable, hardware, electronic equipment, packaging, printing, medical devices, auto parts, textiles, leather, apparel, footwear, rubber and plastic products, universities, research laboratories, inspection arbitration, technical supervision departments, and various other industries. Essential equipment for quality management and physical testing.

Technical Specifications

Maximum Load	5KN
Maximum Stroke	800mm
Pillar Length	1000mm
Test Speed Range	0.001～500mm/min
Dimensions (HWD)	4505501400mm
Weight	Approximately 150kg
Power Supply	AC 220V

Standard Configuration

Includes one set of tensile fixtures
