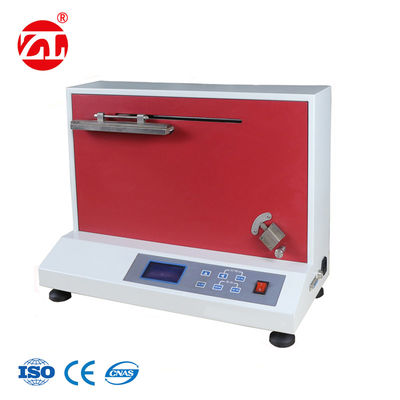

ASTM D 1388 Computer Controlled Infrared Fully Automatic Fabric Stiffness Tester

Large Image : ASTM D 1388 Computer Controlled Infrared Fully Automatic Fabric Stiffness Tester

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-5011

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Fully Automatic Fabric Stiffness Tester is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 set / month

Contact Now

Detailed Product Description

Product Name:	Fully Automatic Fabric Stiffness Tester	Working Pattern:	Computer Controlled, Infrared Stealth Slant Detecting, Chinese Liquid Crystal Display,printing Out Testing Results
Testing Accuracy:	0.01 Cm	Extension Elongation:	0.5-20.5cm
Specimen Pressing Specification:	2.5×25 Cm
Highlight:	abrasion resistance testing machine , yarn twist tester

ASTM D 1388 Computer Controlled Infrared Fully Automatic Fabric Stiffness Tester

The ASTM D 1388 Computer Controlled Infrared Fully Automatic Fabric Stiffness Tester is a precision instrument designed for comprehensive stiffness testing of various materials with advanced infrared detection technology.

Applicable Range

Testing stiffness of all kinds of woven and knit goods
Nonwoven fabrics and coated fabrics
Materials including cotton, wool, silk, linen, and chemical fiber
Flexible materials such as paper, leather, film, etc.

Relevant Standards

ZB WO4003, GB/T18318, ASTM D 1388, ISO 9073-7, BS EN 22313

Technical Parameters

Parameter	Specification
Working Pattern	Computer controlled, infrared stealth slant detecting, Chinese liquid crystal display, printing out testing results
Testing Accuracy	410 30` 430 450 (adjustable)
Extension Elongation	0.5-20.5 cm
Testing Accuracy	0.01 cm
Specimen Pressing Specification	2.5 × 25 cm
Specimen Pressing Pushing Speed	0.3 cm/s, 0.4 cm/s, 0.5 cm/s
Power Source	AC220V 50Hz 0.12kW
External Dimension	470 × 290 × 405 mm
Weight	18 kg
