ISO17707 Safety Footwear Sole Bending Test Machine 90° Bending Testing Equipment

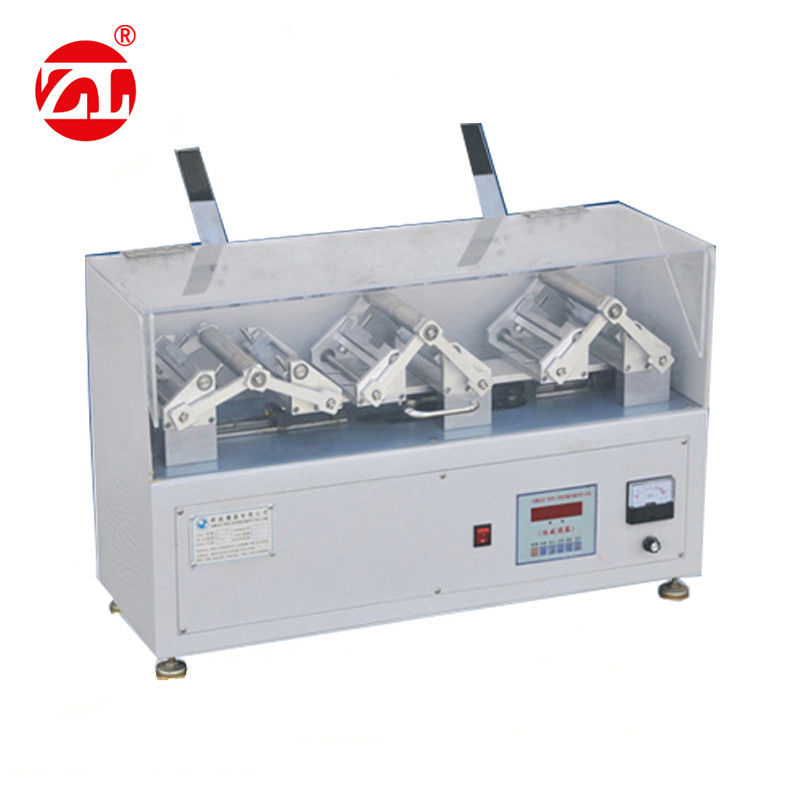

Large Image : ISO17707 Safety Footwear Sole Bending Test Machine 90° Bending Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2203

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Sampling:	3pcs
Flexing Angle:	90°	Flexing Speed:	125-150CYCLES/MIN
Width Of The Grips:	144MM	Counter:	LCD 0-999999
Highlight:	impact test equipment , temperature test machine

ISO17707 Safety Footwear Sole Bending Test Machine 90° Bending Testing Equipment

Safety Footwear Sole Bending Testing Machine

This testing equipment is designed to determine the resistance of materials to cut growth during repeated flexing, specifically applicable to outsoles of footwear including sole constructions.

Design Standards

Meets EN344, SATRA TM161, ISO17707 standards

Testing Methodology

Using a cutting tool to pierce the specimen between the cleats at three points along the line of maximum bending stress. The equipment performs specified speed and times of 90° bending action to inspect cut growth with precise measurement.

Technical Specifications

Parameter	Specification
Product Name	Safety Footwear Sole Bending Tester
Sampling	3 pieces
Flexing Angle	90°
Flexing Speed	125-150 cycles/min
Width of Grips	144 mm
Counter	LCD 0-999999
Dimensions (W×D×H)	100 × 53 × 30 cm
Weight	98 kg
Power	AC220V, 3A
