Safety Shoes / Helmet Impact Testing Machine Steel Striker Available 220V 60hz

Large Image : Safety Shoes / Helmet Impact Testing Machine Steel Striker Available 220V 60hz

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2201

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Safety Shoes / Helmet Impact Testing Machine is Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Drop Height:	0~1100mm
Striker Weight:	(EN) 20±0.2kg, (BS, ANSI) 22.7KG	Impact Energy:	(EN)200J, (BS, ANSI)1002J
Striker:	(EN)3±0.1mm, (ANSI)ø25.4	Warranty:	220v 60hz
Product Name:	Safety Shoes / Helmet Impact Testing Machine Steel Striker Available 220V 60hz	Key Words:	Safety Shoes , Impact
Highlight:	impact test equipment , temperature test machine

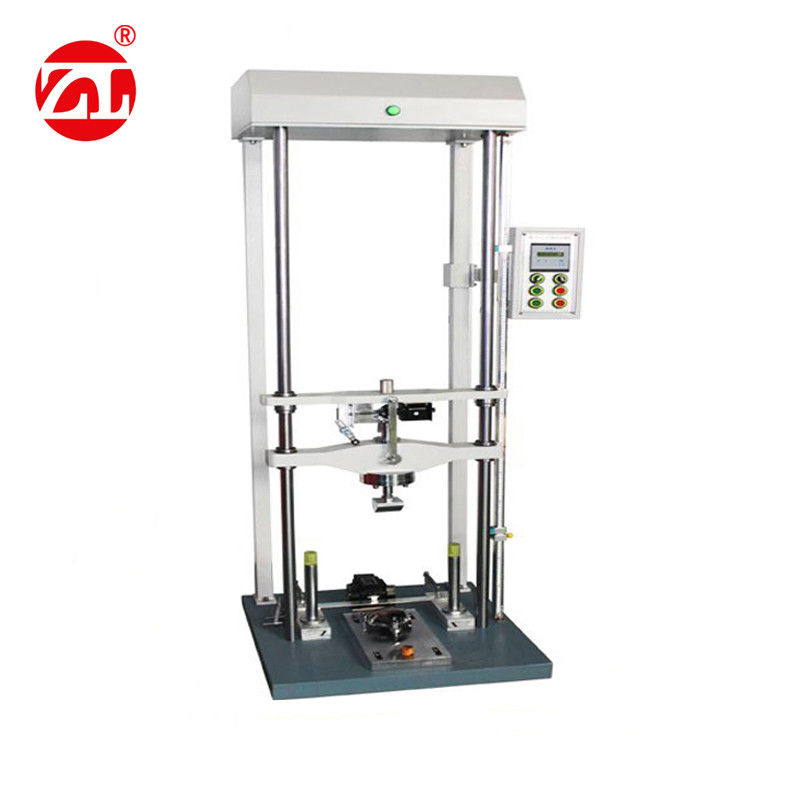

Safety Shoes / Helmet Impact Testing Machine Steel Striker Available 220V 60hz

Product Overview

The Safety Shoes Impact Testing Machine is designed with a steel striker that falls freely on vertical guides from a predetermined height to deliver the required impact energy to the toe of safety footwear. This measures the degree of dent formation while ensuring the toecap does not develop any cracks along the test axis or penetrate through the material.

Compliance Standards

This testing machine complies with BS-953, EN-344, ANSI-41, CSA-Z195, and ISO 8782 international standards.

Technical Specifications

Model	Safety shoes impact tester
Striker Weight	(EN) 20±0.2kg, (BS, ANSI) 22.7KG
Drop Height	0~1100mm auto adjustable
Impact Energy	(EN) 200J, (BS, ANSI) 1002J
Striker	(EN) 3±0.1mm, (ANSI) ø25.4
Dimension	70×70×180cm
Weight	185kg
Power	AC220V/50Hz or others
