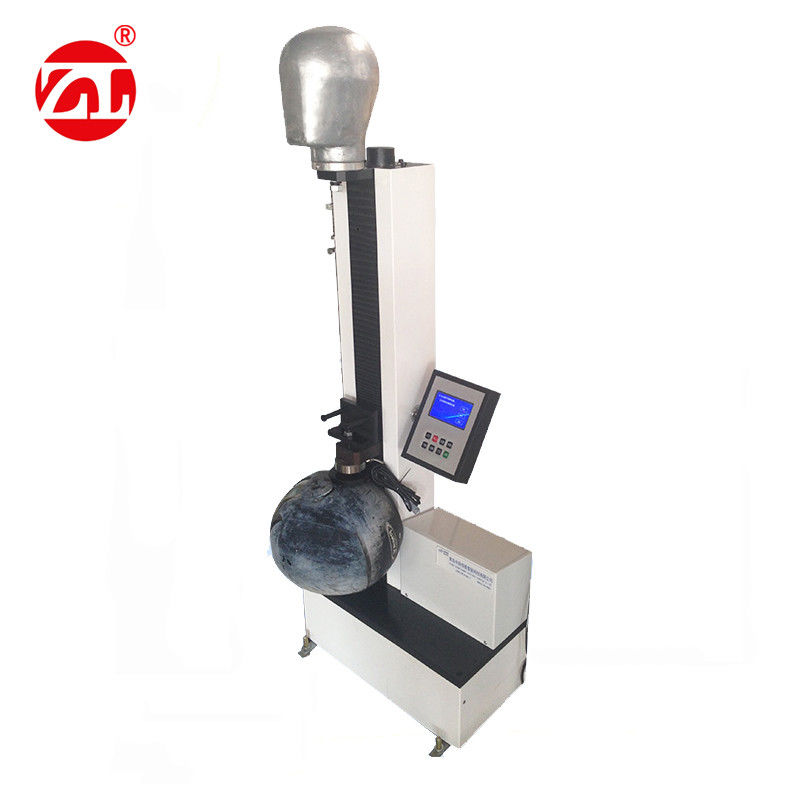

220V 50hz Stiffness Helmet Testing Machine For Motorcycle Helmet GB811-2010

Large Image : 220V 50hz Stiffness Helmet Testing Machine For Motorcycle Helmet GB811-2010

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1811

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Force Value Range:	0 ~ 2000N
Displacement Range:	0-500mm	Timing Range:	0-99min
Test Speed:	0-500mm/min	Stiffness Plate:	Hardness 45HRC
Highlight:	helmet testing equipment , temperature test machine

220V 50Hz Stiffness Helmet Testing Machine For Motorcycle Helmet GB811-2010

Motorcycle Helmet Stiffness Tester

Designed according to GB811-2010 standards for motorcycle helmet production, this testing machine evaluates the stiffness performance of motorcycle helmets. Widely used by helmet manufacturers, research institutions, and quality supervision departments.

Main Features

Single-column host structure with vertical linear movement
Touch screen + PLC + specialized test program control system
Automatic program control with specialized motors and controllers
Automatic speed adjustment based on test conditions
Automatic 2-minute fixed force value maintenance with closed-loop control
Real-time display of force value, time, displacement, deformation, speed, and test curves

Technical Specifications

Parameter	Specification
Force Value Range	0-2000N, accuracy 1%
Displacement Range	0-500mm, precision 0.1mm
Timing Range	0-99min, precision 0.1s
Test Speed	0-500mm/min (no load), infinitely variable speed
Working Power	AC220V, 50Hz
Stiffness Plate	Metal plate hardness 45HRC

Performance Criteria (Class A Helmets)

Under 630N force, deformation difference along test axis from initial 30N load ≤ 40mm
When unloading to restore 30N load, measured deformation difference from initial 30N load ≤ 15mm

Applicable Standard

GB811-2010 - Motorcycle Helmet Safety Standard
