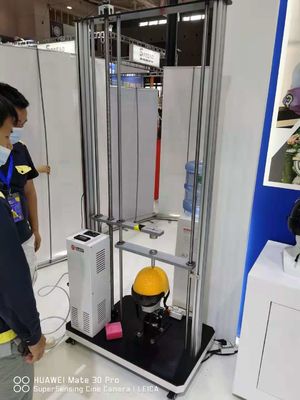

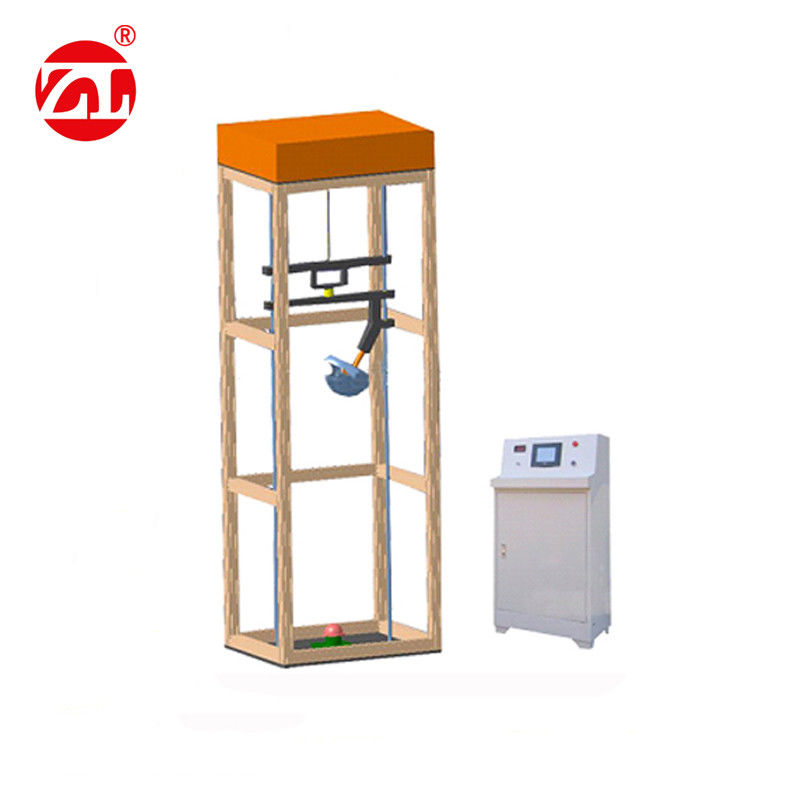

Motorcycle Helmet Collision Penetration Resistance Performance Testing Machine

Large Image : Motorcycle Helmet Collision Penetration Resistance Performance Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1814

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Motorcycle Helmet Collision Penetration Resistance Performance Testing Machine is Packaged within wooden case
Delivery Time:	10-15 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Product Name:	Motorcycle Helmet Collision Penetration Resistance Performance Testing Machine	Power:	220v 50hz
Maximum Impact Height:	3M	Acceleration Sensor Measuring Range:	0-1000g
Measurement Accuracy:	0.1ms	Collection Frequency Response Range:	0-1000Hz
Warranty:	12 Month	Key Words:	Collision Penetration Resistance
Highlight:	impact test equipment , temperature test machine

Motorcycle Helmet Collision Penetration Resistance Performance Testing Machine

Equipment Description:

Mainly used in motorcycle helmets and the special test equipment. It is the various helmet manufacturers, testing agencies, universities, research institutes and other special test equipment. The machine uses high-precision acceleration sensors to ensure accurate and reliable measurement, simple, quickly and accurately.

Corresponding standard: GB811-1998 standard

Technical parameter:

the maximum impact height	3000MM (impact and penetration to meet the two measurement height)
the acceleration sensor measuring range	0-1000g
the height of the helmet	A (1829 ± 2mm, 1384 ± 2mm)
the height of the helmet	B (1600 ± 2mm)
falling helmet Weight	4 kg (trumpet), 5 kg (medium), 6 kg (large) each one
the band cut-off point	-2.5 ~-4DB
the attenuation slope	-9 ~ -24DB/oct
reaction time measurement accuracy	0.1ms
the measurement uncertainty	5%
the collection frequency response range	0-1000Hz
power supply	VC380V, 50Hz
