Home ProductsTextile Testing Machine

Fabric Moisture Permeability Textile Testing Machine With Computer Control

China Dongguan Zhongli Instrument Technology Co., Ltd. certification
China Dongguan Zhongli Instrument Technology Co., Ltd. certification
Exceptional company. 5 STAR!!! Ship rapidly the item and very WELL packed and protected.Very good machinery and very good communication with company. i more than highly recommend using Dongguan Zhongli Instrument.

—— Remy Attalin

The response from the seller was very fast and helpful. Issuing and confirming the PO/PI was done in a single day. The product was shipped the next day after the transaction is confirmed. Couldn't be more satisfied in terms of service provided by the seller. The machine is well packed in wooden case. Everything arrived in good condition. Come with

—— Warunee Nahauythong

I'm Online Chat Now

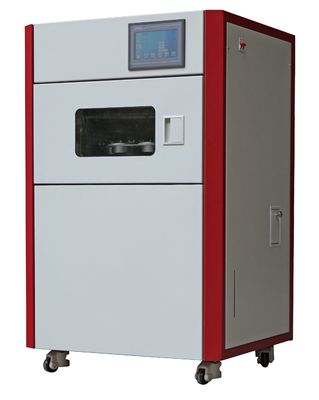

Fabric Moisture Permeability Textile Testing Machine With Computer Control

Fabric Moisture Permeability Textile Testing Machine With Computer Control
Fabric Moisture Permeability Textile Testing Machine With Computer Control Fabric Moisture Permeability Textile Testing Machine With Computer Control Fabric Moisture Permeability Textile Testing Machine With Computer Control Fabric Moisture Permeability Textile Testing Machine With Computer Control

Large Image :  Fabric Moisture Permeability Textile Testing Machine With Computer Control

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO
Model Number: ZL-5017
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fabric Moisture Permeability Textile Testing Machine With Computer Control is Packaged within wooden case
Delivery Time: 3-7 days
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 100 set per month
Detailed Product Description
Product Name: Fabric Moisture Permeability Textile Testing Machine With Computer Control Power: 220v 50hz
Testing Box Temp. Control Range: 20~45℃;distinguishability 0.1℃ Testing Box Temp. Control Accuracy: ±0.5℃
Testing Box Humidity Control: 40%RH~95%RH±2%RH Testing Box Humidification: 300ml/h
Drying Box Temp.control Range: Interior Temp.~199℃ Testing Time: 1min~999h59min
Circulating Air Speed: 0.02~1.5m/s Key Words: Moisture Permeability
High Light:

textile testing equipment

,

yarn twist tester

Textile and Fabric Moisture Permeability Testing Machine





1.Applicable Range:


Textile and Fabric Moisture Permeability Test Machine used for testing the moisture permeability of all

kinds of fabrics, including moisture-permeable coated fabrics and nonwoven fabrics.

2.Relevant Standards:


Textile and Fabric Moisture Permeability Test Machine meet GB/T12704 ASTM E96 JIS L1099 BS 7209

3.Instrument characteristics:


3.1  Integrated structure of Baking box and constant temperature and humidity box.
3.2  Computer controlled, LCD Chineese menu operation.
3.3  Flow cycle wind speed 0.02-1.5m/s, digital set.
3.4  Imported high-precision temperature and humidity sensor, imported motor driver, ceramic pipe heating.

Technical parameters:



Working pattern

Computer control, LCD Chinese menu operation,testing

environment monitoring

Testing box temp. control range 20~45℃;distinguishability 0.1℃
Testing box temp. control accuracy ±0.5℃
Testing box humidity control 40%RH~95%RH±2%RH
Testing box humidification ≥300ml/h
Drying box temp.control range interior temp.~199℃
Testing time 1min~999h59min
Circulating air speed 0.02~1.5m/s
Permeability area 2827mm2 (60mmGB) optional 3848mm2(70mmASTM)
Number of moisture permeability cups 6 pieces
Drying box size 490*400*215mm
Power source AC220V 50Hz 4kW
External dimension 720*560*1570mm
Weight 100kg



Fabric Moisture Permeability Textile Testing Machine With Computer Control 0



Fabric Moisture Permeability Textile Testing Machine With Computer Control 1
