| Power: | 220v 50hz | Measurement Range: | 100mN~13000Mn |
|---|---|---|---|
| Tearing Arm: | (104±1)mm | Tear The Initial Angle: | 27.5 ±0.5° |
| Sample Length Of Incision: | (20±0.5)mm | Warranty: | 12 Month |
| High Light: | paper test equipment,carton bursting tester |
||
Product Summary:

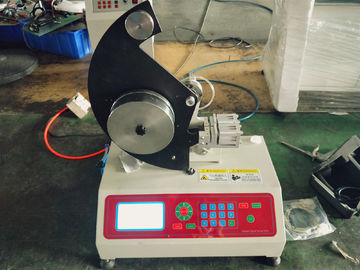

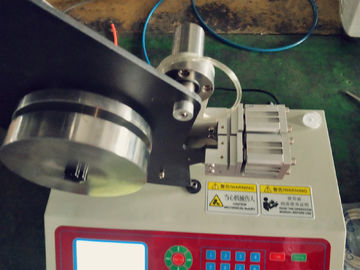

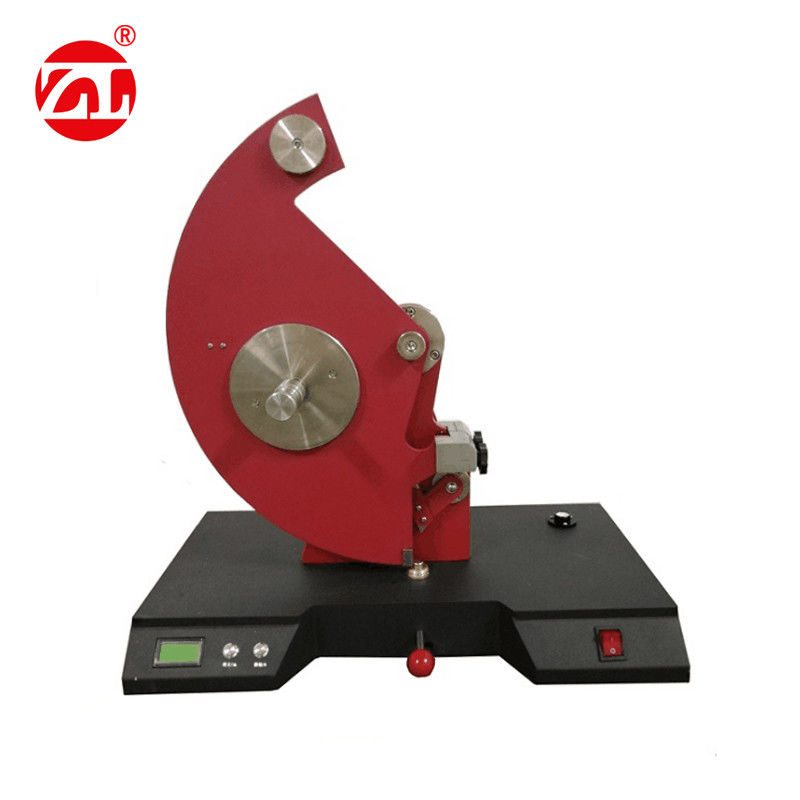

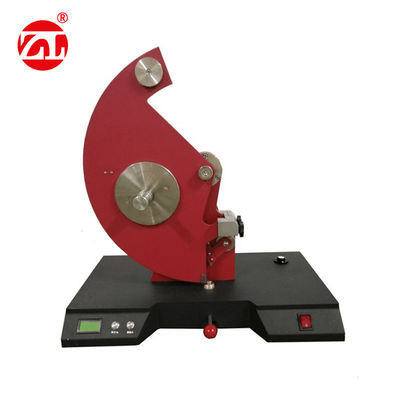

Digital Elmendorf Tearing Test Machine is the determination of tear strength of paper, a special instrument, the instrument is mainly used for the determination of Tearing the paper can also be used for a lower degree of determination of tearing strength of cardboard.
Main Functions:
Instruments based on the functional principles of the design. Tear in the position to be a certain potential
energy of the pendulum was released, the potential energy into kinetic energy, and tear samples do work.The force required to tear the sample (reflecting the rotation for the fan-shaped pendulum angle) through the high-precision photoelectric rotary encoder is converted to electrical signal input control circuit, after treatment by the circuit means to display or print output.
Applications Industry:
Digital Elmendorf Tearing Test Machine used to paper making, research and product quality supervision and inspection industries and sectors such as the ideal testing instrument.
Technical Parameter:
| 1.Product Name | ZL-9010A |
| 2.Measurement range |
100mN~13000Mn(Provides the best sample layer and the corresponding measuring range, according to the tested sample strength of rational choice specimen layer) |
| 3.Indication accuracy | Displaying error:±1% ;Acceptability error of indication:≤1% |
| 4.Tearing arm | (104±1)mm |
| 5.Tear the initial angle | 27.5 ±0.5° |
| 6.Sample length of incision | (20±0.5)mm |
| 7.Outside dimension | 450×310×465(L×W×Hmm) |
| 8.Quality | About 15kg |
| 9.Room temperature | 20±10 Degree/temperature |
| 10.Power | AC22V±22V,50Hz,Power should be a reliable ground |
| 11.Note |
The working environment clean, dry, non-magnetic field strong motion source and corrosive gases |
Main Features:
Digital Elmendorf Tearing Test Machine for the mechanical and electrical integration, testing device, its computer control system uses high-precision photoelectric rotary encoder and digital single-chip microcomputer as the core circuit technology,through the liquid crystal display operations in Chinese cotton sheet type the command prompts and achieve a simple man-machine dialogue , with advanced technology and complete functions, stable performance, easy operation, etc., is the paper, packaging, research and product quality supervision and inspection industries and sectors such as the ideal laboratory equipment.
To Meet The Criteria:
Performance parameters in line with ISO1974 "Paper - Determination of Tearing Strength (Ai-li gate Adolf
Law" and GB455 • 1 "Determination of Degree of paper tearing" and other standard requirements.
