Product Details:
Payment & Shipping Terms:
|
| Power: | 220v 50hz | Pressure Range: | 250~5600kpa |
|---|---|---|---|
| Capacity: | 0~100 Kg/ Cm2 (0.1kg/cm2) | Accuracy: | ± 0.5% |
| Speed Of Compres: | High Pressure 170± 10ml/min | Warranty: | 12 Month |
| High Light: | paper test equipment,carton bursting tester |
||

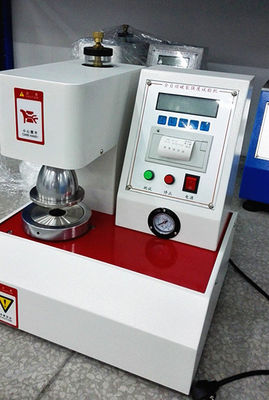

Tester summary:
Mullen burst strength tester is applied to test anti-rupture strength for raw paper, corrugated cardboard,
leather, cloth and synthetic leather.
This tester is fully automatic-type rupture strength tester, Just put into the testing material, the tester
automatically detect, automatic testing, automatic hydraulic recoil and automatic computing, storage testing data and printing. It is an important tester for controlling quality of finished product and quality inspection.
Applicable industry:
Mullen burst strength tester applied to test the anti-breaking strength of boxes for packaging, which of
electronics, electrical appliances, wires, hardware, bicycles, handbags, food, footwear, clothing, furniture.etc.
Technical parameters:
| Model | Mullen burst strength tester |
| Capacity (Optional) | High Pressure 0~100 Kg/ cm2 (0.1kg/cm2) |
| Unit | psi, kg/cm2 |
| Accuracy | ± 0.5% |
| Pressure Range | 250~5600kpa |
| Speed of Compression | High Pressure 170± 10ml/min |
| Specimen Clamping Force | >690kpa |
| Oil | 85% Glycerin; 15% Distilled Water |
| Sensing method | Pressure Transmitter |
| Indicating Method | Digital |
| Display | LCD |
| Material of the Ring | Stainless Steel SUS304 |
| Opening in Upper Clamp | 31.5 ± 0.05 mm Diameter |
| Opening in Lower Clamp | 31.5 ± 0.05 mm Diameter |
| Motor | Anti-vibration Motor 1/4 HP |
| Dimension (L×W×H) | 430×530×520 mm |
| Weight | Approx. 64 kg |
| Power | 1 , AC220± 10%, 50 Hz |
| Power Capacity | 120W |
| Standard | JIS-L1004, L1018, L1031, K6328, P8131, P8112,ASTM-D2210; TAPPIT403TS-63,ISO2759-2001; GB/T1539 |
