Product Details:
Payment & Shipping Terms:
|
| Power: | 220v / 380v | Max Detection Width: | 2400mm |
|---|---|---|---|
| Maximum Roll Diameter: | ≤Φ580mm | Speed: | ≤50m/min |
| Error: | ≤±3mm | Warranty: | 12 Month |
| High Light: | abrasion resistance testing machine,yarn twist tester |
||
1. Equipment description:

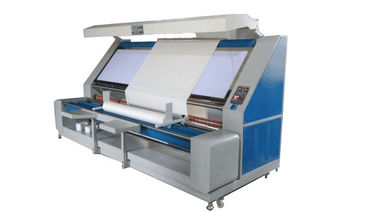

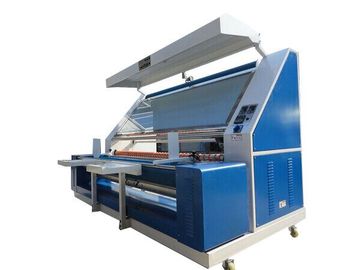

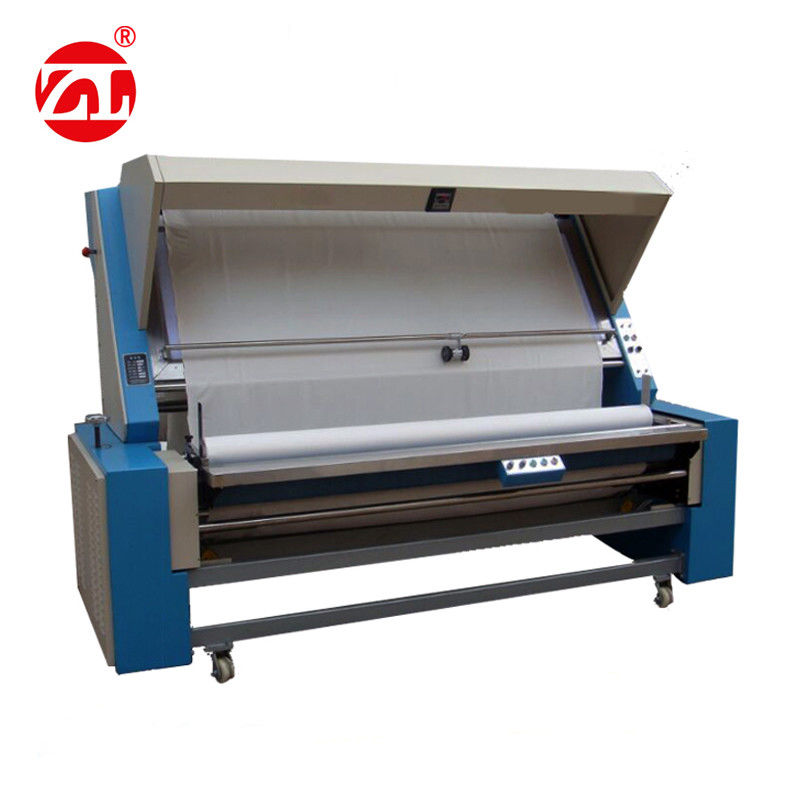

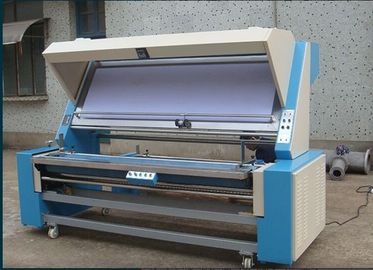

Multi-function Electronic Automatic Fabric Inspection and Rolling Machine applied to wool, dyed fabric, dyeing, knitting or semi-finished or finished cotton fabric inspection. This machine is the ideal substitute for imported
products. ZL type inspection machine all the features, an increase of infrared and magnetic points of edge
automatic clutch to control tension system does not distort the fabric to keep running smoothly controlled,
so that your product quality and appearance of more attractive.
2. Applicable industry:
Multi-function Electronic Automatic Fabric Inspection and Rolling Machine suitable for Linen, cotton fabric,
knitted fabric, woven, non-woven cotton, quilting, curtains, bedding, cloth toys, leather, artificial leather,
jacquard cloth, towel cloth, chemical fiber fabrics manufacturers use.
3. Technical parameters:
| Model | ZL-5025 | |
| Detection width | 2400mm | |
| Maximum roll diameter | ≤Φ580mm | |
| Speed | ≤50m/min | |
| Error | ≤±3mm | |
| Power | AC380V 1.1KW | |
| Weight | 1000KG | |
| Dimension(L * W * H) | 3300*1100*1920mm | |
