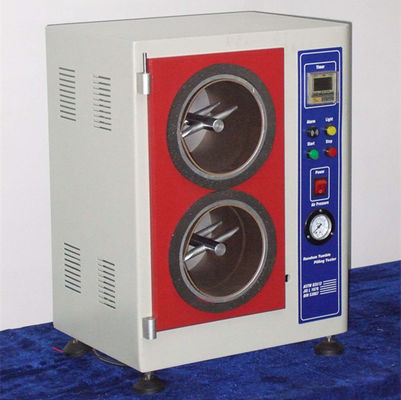

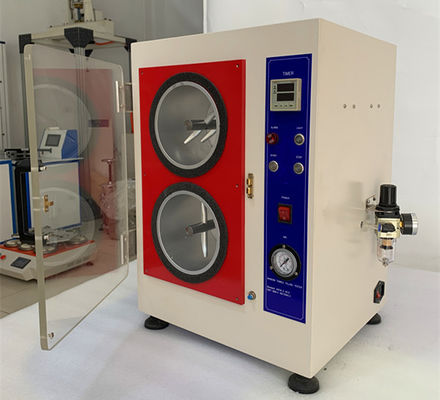

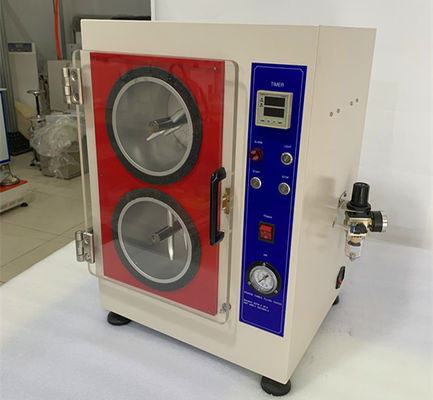

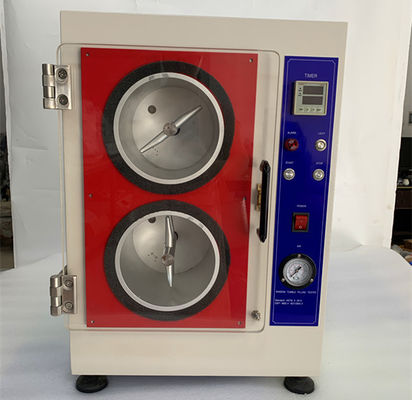

Fabric Shuffle Pilling Textile Testing Machine With Two Box Type 220V 50hz

Large Image : Fabric Shuffle Pilling Textile Testing Machine With Two Box Type 220V 50hz

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-5003

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Fabric Shuffle Pilling Textile Testing Machine With Two Box Type 220V 50hz is Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Material:	Sheet Metal + Plating
Balling Box:	2	Size Of Inner Case:	235×235×235mm
Case Speed Of Revolution:	60±2r/min	Counting Range:	1~99999 Times
Highlight:	textile testing equipment , abrasion resistance testing machine

Fabric Shuffle Pilling Textile Testing Machine With Two Box Type 220V 50hz

Applicable Range:

Used for pilling test of fabrics ( woollen jersey especially ) under no pressure.

Relevant Standards:

GB/T4802.3 ISO 12945.1 BS5811 JIS L1076 IWS TM152

Instrument characteristics:

1. Imported rubber cork,Polyurethane sample carrier tube;
2.The inner rubber cork is a removable design;
3. Non-contact photoelectric counting , liquid crystal displaying.

Technical parameters:

Model	Fabric shuffle Pilling Tester
Balling box quantity	4 piece
Size of inner case	235×235×235mm
Case speed of revolution	60±2r/min
Counting range	1~99999 times
Sample carrier tube	external dimension Φ30×140 mm
Sample carrier tube	4piece /case
Power source	AC 220V±10% 50Hz 120W
External dimension(mm)	1260×560×950
Weight(kg)	93

Fabric Shuffle Pilling Textile Testing Machine With Two Box Type 220V 50hz 0

Fabric Shuffle Pilling Textile Testing Machine With Two Box Type 220V 50hz 1

Fabric Shuffle Pilling Textile Testing Machine With Two Box Type 220V 50hz 2
