ASTM D4970 Touch Screen Texitle Abrasion Resistance Testing Machine

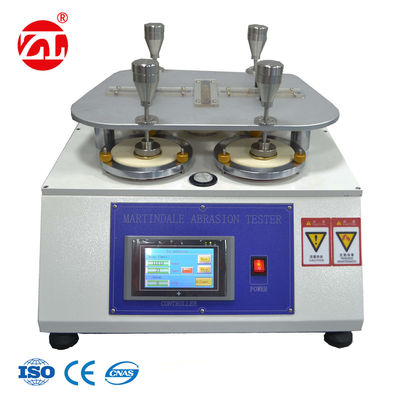

Large Image : ASTM D4970 Touch Screen Texitle Abrasion Resistance Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-5006

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	ASTM D4970 Touch Screen Texitle Abrasion Resistance Testing Machine is Packaged within safety wooden case
Delivery Time:	3-7 Days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Material:	Sheet Metal + Spray Paint	Power:	220V 50HZ
Working Station:	4 / 6 / 8 / 9	Usage:	Abrasion Testing For Fabric / Texitle
Maximum Dynamic Range:	24±0.5mm ,60.5±0.5mm	Standards:	ASTM D4970
Warranty:	12 Month	Product Name:	ASTM D4970 Touch Screen Texitle Abrasion Resistance Testing Machine
Key Words:	ASTM D4970
Highlight:	textile testing equipment , abrasion resistance testing machine

ASTM D4970 Touch Screen Textile Abrasion Resistance Testing Machine

Product Overview

The ASTM D4970 Martindale abrasion tester is designed for testing the wearing resistance, abrasion performance, and appearance change (pilling degree/class) of textiles and membrane materials.

Applicable Range

Used for testing the performance of wearing resistance, abrasion, and appearance change (pilling degree/class) of textiles and membrane materials.

Relevant Standards

GB/T21196, GB/T4802.2, GB/T13775, FZ/T20020
ISO12945-2, ISO12947
ASTM D4966, ASTM D4970, ASTM D3886
JIS L1096
DIN53863, DIN53865
BS3424, BS5690, BS EN388, BS EN530
IWS Tm196/TM112
M & S

Technical Parameters

Parameter	Specification
Model	ASTM D4970 Martindale Abrasion Tester
Station Number	9 station
Count Display	a. Estimated counting: 0~999,999 times b. Total counting: 0~999,999 times
Maximum Dynamic Range	24±0.5mm, 60.5±0.5mm
Weight of Pressure Components	a. Gripper: 200±1g b. Cloth samples hammer: 395±2g c. Furniture accessories sample hammer: 594±2g d. Stainless steel butterfly piece: 260±1g
Effective Friction Diameter of Grinding Block	A type: 200g (1.96N) friction head Ø28.8-0.084mm B type: 155g (1.52N) friction head Ø90-0.10mm
Relative Velocity of Gripper and Grinding Station	50-2r/min
Weight of Pressure Hammer	2385±10g
Dimensions	885mm × 600mm × 410mm (L × W × H)
Weight	150kg
Power	AC220V, 50Hz
