| Material: | Sheet Metal + Spray Paint | Power: | AC220V±10% 2A 50HZ |
|---|---|---|---|
| Usage: | ECT / RCT Test | Testing Load: | 200kg |
| Compression Speed: | 12.5 ± 2.5mm/min (0-35mm/min Can Be Adjusted Digitally) | Printer: | Thermal Printing |
| Return Velocity: | 5-40.0 Mm/min(Can Be Set Randomly) | Warranty: | 12 Month |
| High Light: | carton test machine,carton bursting tester |
||

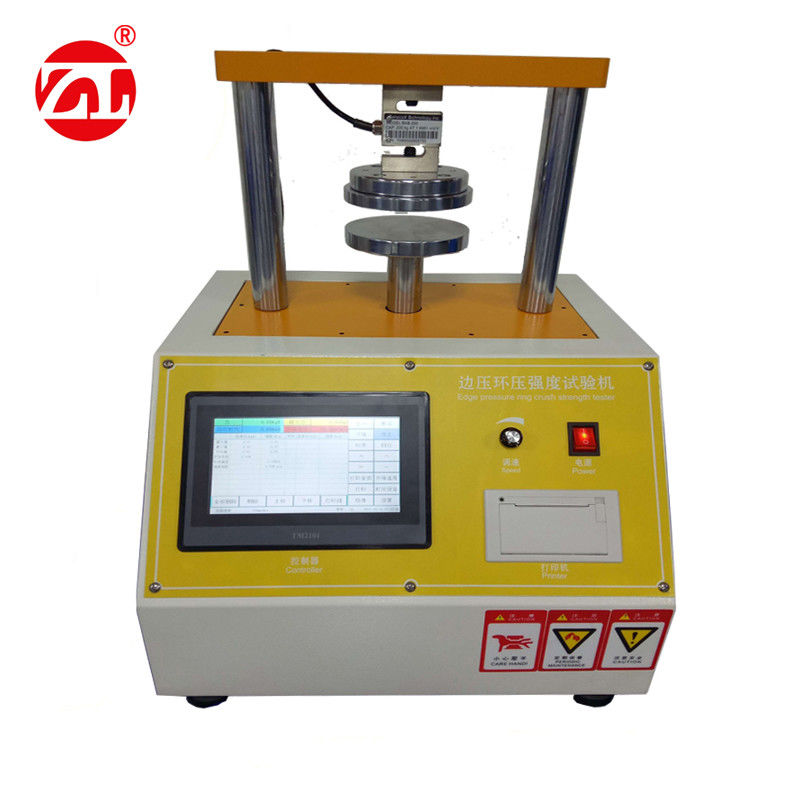

Paper Board Edge Crush Testing Equipments for RCT / FCT / ECT
Introduction:
Paper Board Edge Crush Test Machine ECT Test Machine is a new type of compression testing instrument developed by our company according to the specification of national standard. With mechanical and electrical integration configuration, the instrument is well-designed using modern mechanical design theory and human engineering design criteria and micro-process. The instrument is upper pressure plate fixed type, which has high precision. It applies to the test of Ring Crush Test (RCT), Edge Crush Test (ECT). Flat Crush Test (FCT), Pin Adhesion Test(PAT) and Concora Medium Test(CMT).
Applications:
Paper Board Edge Crush Test Machine ECT Test Machine suitable for paper, paper board, Corrugated cardboard, Corrugated Package.
Standards:
Paper Board Edge Crush Test Machine ECT Test Machine meet ISO 3035. ISO 3073. ISO 7263. GB/T 2679.8, GB/T 6546-1998, GB/T 6548, GB/T 2679
Specifications:
| Product Name | ZL-9003 Paper Board Edge Crush Test Machine ECT Test Machine |
| ITEM | Specification |
| Power Supply | AC220V±10% 2A 50HZ |
| Measuring Range | 0~3000N |
| Compression Speed | 12.5 ± 2.5mm/min (0-35mm/min Can be adjusted digitally) |
| Return Velocity | 5-40.0 mm/min(Can be set randomly) |
| Display | English menu and LCD screen |
| Printer | thermal printing, high speed and no noise |
| Communication output | standard RS232 interface |
Characteristic:
1. High speed return after finishing test
2. Imported step motor with servo control adopted
3. The test result can be measured, statistical and printed automatically and the data can be saved.
4. Blue color LCD display, which can be display the crush time and loading force real time ,
PN-CT300B crush tester can display crush graph real time.
5. New PC software able to manage and analyse the data and can communicate with PC. (Only for
PN-CT300B-PC type)
6. Thermal printer, high speed and no noise .
7. Use the modern design idea of mechanical and electrical integration, which has compact configuration,
pleasing appearance and convenient maintenance.
