Product Details:
Payment & Shipping Terms:
|
| Product Name: | UL94 Horizontal And Vertical Combustion Tester For Plastic Materials | Volume In The Box: | ≥0.5 Cubic Meter, With Glass Observation Door |
|---|---|---|---|
| Flame Time: | 0 ~ 99 Minutes And 99 Seconds Can Be Set | After Flame Time: | 0 ~ 99 Minutes 99 Seconds Can Be Set |
| Burning Angle: | 20 °, 45 °, 90 ° (ie 0 °) Adjustable | Alignment Method: | Motor-driven Alignment Spline |
| Power Supply: | AC 220V, 50Hz | Key Words: | UL94 Horizontal And Vertical Combustion Tester For Plastic Materials |
| High Light: | UL94 Combustion Tester,AC220V Combustion Tester,UL94 Electric Bike Tester |
||

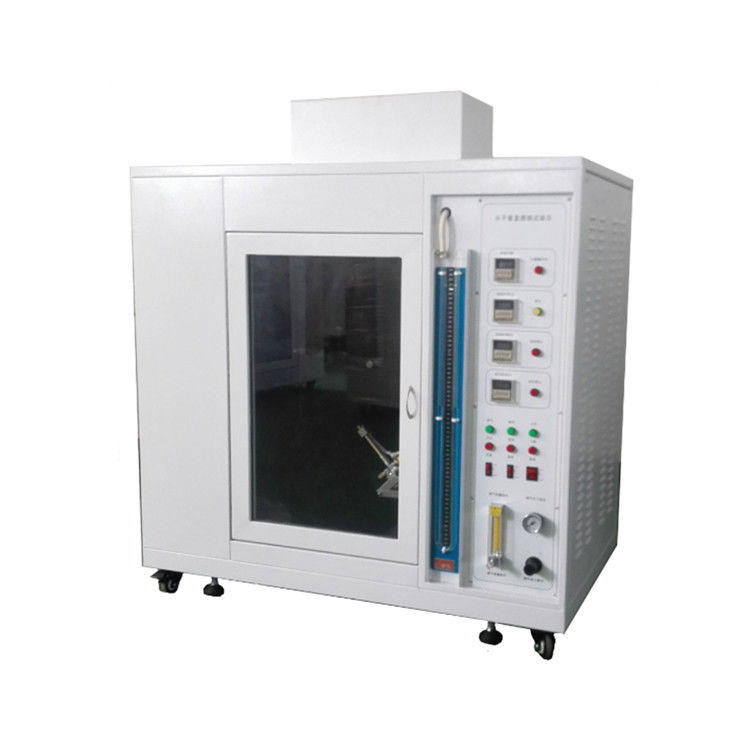

UL94 Horizontal and Vertical Combustion Tester for Plastic Materials
Reference standards:
UL94, GBT2408
Technical description:
This tester is suitable for testing and evaluating the combustion characteristics of plastic materials. It is designed and manufactured in accordance with the relevant clauses specified in the American UL94 standard and GBT2408 standard "The Flammability Test of Plastic Materials for Equipment and Appliance Parts". Perform horizontal and vertical flammability tests, and are equipped with a gas flow meter to adjust the flame size, and the operation is simple and safe. This instrument can evaluate the flammability of materials or foam plastics such as: V-0, V-1, V-2, HB, 5V, HF-1, HF-2, HBF level.
Basic specifications:
| Volume in the box | ≥0.5 cubic meter, with glass observation door |
| Flame time | 0 ~ 99 minutes and 99 seconds can be set |
| After flame time | 0 ~ 99 minutes 99 seconds can be set |
| After burning time | 0 ~ 99 minutes and 99 seconds can be set |
| Burning angle | 20 °, 45 °, 90 ° (ie 0 °) adjustable |
| Burner size parameters | nozzle inner diameter Ø9.5mm, nozzle effective length 100mm, with air adjustment holes |
| Flame height | can be adjusted from 20mm to 175mm according to standard requirements |
| Alignment method | motor-driven alignment spline |
| Power supply | AC 220V, 50Hz |
Product features:
It is also equipped with lighting device, exhaust device, gas flow regulating valve, gas pressure gauge, gas pressure regulating valve, gas flow meter, gas U-shaped pressure gauge and sample fixture.
