Toaster Switch Durability Tester With Infrared Temperature Measuring System

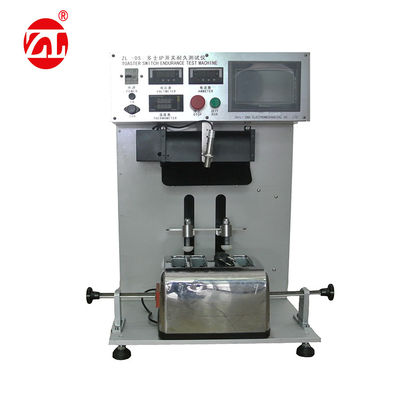

Large Image : Toaster Switch Durability Tester With Infrared Temperature Measuring System

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3422

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Toaster Switch Durability Tester with Infrared Temperature Measuring System is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Product Name:	Toaster Switch Durability Tester With Infrared Temperature Measuring System	Input Voltage:	220V/50Hz
Test Times:	1~9999 Times (four Digits)	Cooling Fan Power:	100W
Driving Mode:	Electric	Operation Mode:	PLC.
Highlight:	furniture testing equipment , furniture tester

Toaster Switch Durability Tester With Infrared Temperature Measuring System

Product Introduction

The Toaster Switch Durability Tester is a specialized testing instrument designed and manufactured according to the requirements of IEC60335-2-9:19.101, GB4701-14:19.101, and other standards. It is specifically engineered for toaster switch durability testing and offers advantages of simplicity, accuracy, and practicality.

Standard Requirements

Toasters (bread toasters) are tested according to the following protocol:

Testing at rated input power under normal operating conditions for 6 cycles without bread
Cooling to room temperature followed by repeating the previous dynamic test 500 times
After testing, toasters must be able to continue working without apparent deformation
Repeating the previous action for a total of 500 times

Technical Performance

Input Voltage	220V/50Hz
Test Times	1~9999 times (four digits)
Cooling Fan Power	100W
Temperature Measuring Device	Infrared Temperature Measuring System
Driving Mode	Electric
Operation Mode	PLC
Switches	Equipped with longitudinal and transverse keys, with spring as buffer to protect the sample keys, can be pressed on the samples of 2 switches
