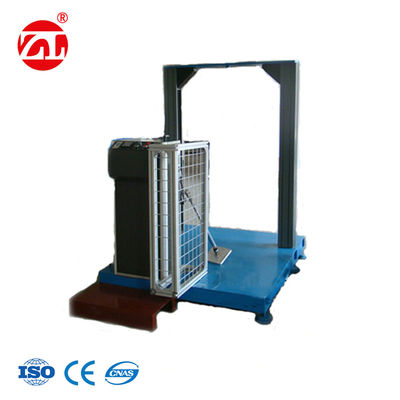

Rocking Chair Bearing Life Furniture Testing Machine Swing Amplitude 0 ~ 300 ~ 500mm

Rocking Chair Bearing Life Furniture Testing Machine  Swing Amplitude 0 ~ 300 ~ 500mm
Rocking Chair Bearing Life Furniture Testing Machine  Swing Amplitude 0 ~ 300 ~ 500mm

Large Image :  Rocking Chair Bearing Life Furniture Testing Machine Swing Amplitude 0 ~ 300 ~ 500mm

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-2013
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Rocking Chair Bearing Life Testing Machine is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Detailed Product Description
Product Name: Rocking Chair Bearing Life Testing Machine Swing Amplitude: 0 ~ 300 ~ 500mm
Calculators: 999,999 Times (adjustable) Weights: 10KG (total 15) Maximum Weight 150KG
Dimensions (approx.): (L * W * H) 1650 * 1300 * 2150mm Power: 3∮, AC380V, 50HZ.
High Light:

furniture testing equipment

,

furniture tester

Rocking Chair Bearing Life Testing Machine , Simulate The Conditions In Daily Use





1. Application:



This machine is to simulate the conditions in everyday use, inspection rocking chair bearing durability. The test will be a certain shape, quality of load modules, placed on a seat in the rear backrest repeatedly push, pull action until after a certain number of test bearing conditions, this test can be beneficial to improve the product mix at any time, eliminating potential quality problems, improve product durability and reliability.



2. The principle:



The rocking chair seat surface and the back rest position to a certain shape, the weight of the load module of horizontally disposed, in order to load a predetermined form and frequency repetitive load movement Spray a bit anti-rust oil (2 hours after injection wipe).


3. Machine specifications



Swing amplitude 0 ~ 300 ~ 500mm
Calculators 999,999 times (adjustable)
Weights 10KG (total 15) Maximum Weight 150KG
Dimensions (approx.) (L * W * H) 1650 * 1300 * 2150mm
Power

3∮, AC380V, 50HZ.



4.The rocking chair bearing life tester try not to use in the following situations:

  • Vibration, rocking occasions.
  • Direct sunlight.
  • Hot, dusty, humid places.
  • AC supply of the machine should be well grounded, to ensure safe use.
  • Do not use strong solvents (such as: benzene, nitro oils) washing machine enough.
  • The machine must not inject water and debris, to prevent damage to electrical components, and electric shock.
  • Disassembly and debugging instrument display only within the responsibility of the national measurement units and approved by the Ministry of the Company, other people are not allowed to overhaul.


5. The rocking chair bearing life testing machine maintenance


1. Clean: Always keep the machine clean before and after each use cotton wipe machine applications, in order to keep it clean.
2, Rust: Weekly on the machine surface of the metal part 3 and lubricants: monthly on the machine transmission parts (such as screws) raises lubrication (you can use an ordinary lubricants).
3. Maintenance: Regularly check the control panel buttons are normal....
