Furniture Testing Machine Low Coefficient Of Friction Guide Mattress Roller Durability Tester

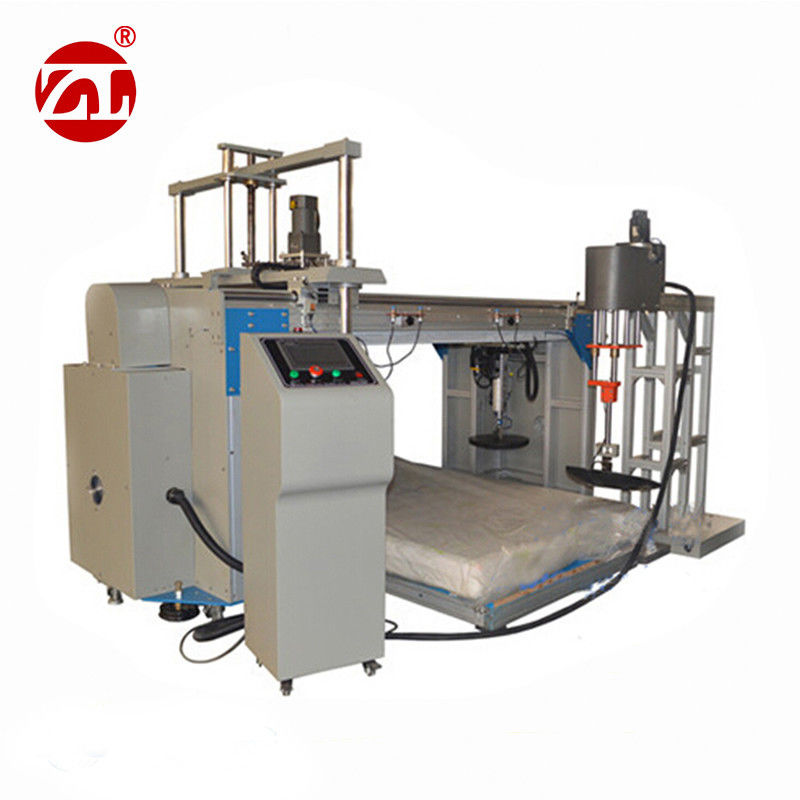

Large Image : Furniture Testing Machine Low Coefficient Of Friction Guide Mattress Roller Durability Tester

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2006

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Mattress Roller Durability Tester is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	Mattress Roller Durability Tester	Hexagonal Wood Barrel:	109kg, Length 36±3in(915±75mm)
Cylinder Wood Barrel:	140kg, Length 1000mm	Test Speed:	0-20r/min
Control Method:	PLC	Power:	AC220V±10%, 50/60Hz, Single Phase
Highlight:	furniture testing equipment , furniture tester

Furniture Testing Machine Low Coefficient Of Friction Guide Mattress Roller Durability Tester

Product Description

The Mattress Roller Durability Tester is designed to determine the durability of any type of mattress and box spring unit by simulating long-term use conditions. It consists of a weighted roller that moves widthwise across a test mattress to simulate body movement.

The stroke length is easily adjustable by sliding the stroke adjusters left or right to suit the mattress under test. Unloading and loading of the roller onto the test mattress is accomplished via a motor-driven lifting assembly.

Specifications

Test Standard	ASTM F1566, EN1957
Test Purpose	Using a horizontal hexagonal wooden drum roll or cylinder to roll back and forth on the mattress, simulating human motion to assess mattress durability
Hexagonal Wood Barrel	109kg, Length 36±3in (915±75mm)
Cylinder Wood Barrel	140kg, Length 1000mm
Maximum Mattress Size	2.2m × 2.2m
Test Speed	0-20r/min
Control Method	PLC
Dimensions	2500mm × 2800mm × 2200mm
Power	AC220V±10%, 50/60Hz, single phase
Accessories	One Hexagonal barrel and Cylinder barrel

Key Features

Adjustable rolling stroke according to different mattresses (adjust limit switch position)
Low coefficient of friction guide ensures full drum weight on the mattress
LCD Touch Screen display provides easy control and setting
