Office Chair And Chassis With Reclining Function Back Durability Tester

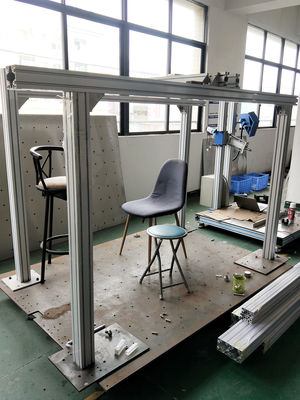

Large Image : Office Chair And Chassis With Reclining Function Back Durability Tester

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2004

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Office Chair Back durability tester is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	Office Chair Back Durability Tester	Cylinder Stroke:	0-500mm
Cylinder Fulcrum Height:	70-150cm Electric Speed Adjustment	Counter:	0-99999999 Times Can Be Set
Cycle Speed:	10-30rpm Or Specified	Power Supply:	Single Phase AC220V 0.5A
Highlight:	furniture testing equipment , furniture tester

Office Chair And Chassis With Reclining Function Back Durability Tester

The Office Chair Back Durability Tester is designed for evaluating the strength and durability of office chair seats and chair backs. This combined testing machine is suitable for all chairs and chassis featuring reclining functions.

The testing methodology involves securing the chair in place and applying a 225 lbs weight to the seat surface. An external force then performs 3,000,000 reciprocating strokes at a speed of 10-30 cycles per minute, moving between the front and rear dead ends.

Compliance Standards: ANSI, SGS, CNS-3089, BIFMA X5.1-2011 8 and 11.3

Technical Specifications

Parameter	Specification
Load Capacity	225 pounds
Cylinder Stroke	0-500mm
Cylinder Fulcrum Height	70-150cm (electric speed adjustment)
Counter	0-99,999,999 cycles (programmable)
Cycle Speed	10-30rpm or as specified
Power Supply	Single phase AC220V 0.5A
Dimensions	140 × 120 × 170cm
