Product Details:
Payment & Shipping Terms:
|
| Product Name: | 1930±50mm | Belt Length: | 90 Cycles /min |
|---|---|---|---|
| Dia.of Small Roller: | Ø225±5mm | Sample Capability: | Max. 6pcs |
| Counter: | LCD , 0~999,999 | Dimension (W×D×H): | 129×75×70cm |
| Weight: | 170kg | Power: | AC 220V 3A |
| High Light: | leather testing equipment,leather measuring machine |
||

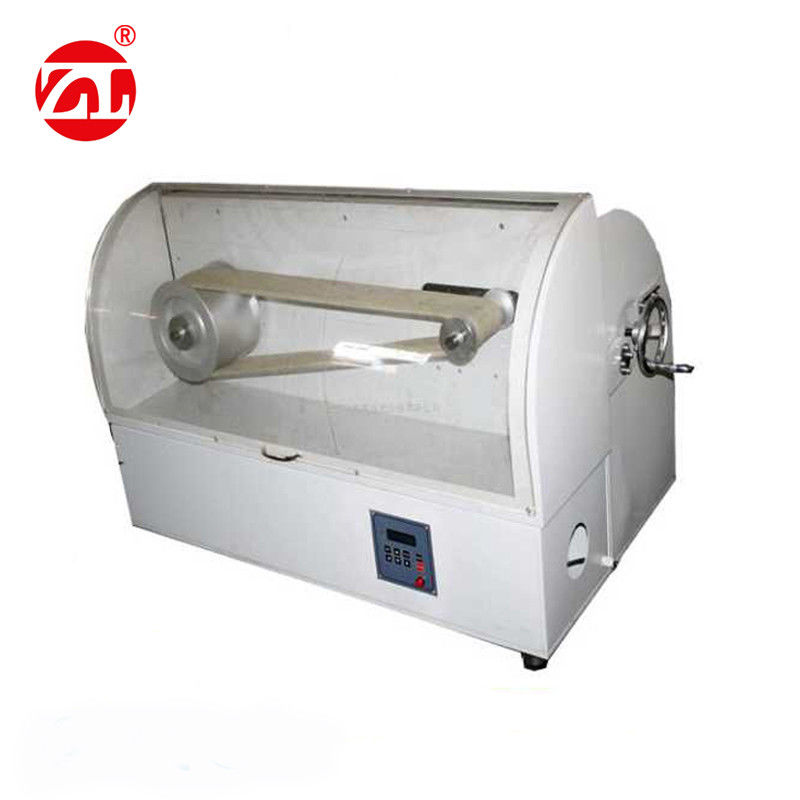

LCD Counter Outsole Belt Flexing Tester , Two Pulleys For Belt Passing
Purpose:
The belt flexing machine provided one of the best indications of cracking of shoe due to flexing during
wear . The front part of the sole is attached to a continuous belt which passes around two pulleys ,
the large one provides the rotation while the small one determines the severity of the flexing action
Parameter:
| Belt Length | 1930±50mm |
| Belt Speed | 90 cycles /min |
| Dia.of Small Roller | Ø225±5mm |
| Dia . Of Small Roller | Ø60mm , Ø90mm , Ø120mm each 0.5mm |
| Sample capability | max.6pcs |
| Counter | LCD , 0~999,999 |
| Dimension (W×D×H) | 129×75×70cm |
| Weight | 170kg |
| Power | AC 220V 3A |
