Product Details:
Payment & Shipping Terms:
|
| Product Name: | 90° Flexing Angle EN Sole Flexing Testing Machine With 3pcs Sampling | Flexing Speed: | 125-150CYCLES/MIN |
|---|---|---|---|
| Width Of The Grips: | 144MM | Counter: | LCD 0-999999 |
| Dimension(W*D*H): | 100*53*30CM | Power: | AC220V,3A |
| Comply To Standard: | EN 344 ; ISO 17707 | Weight: | 98kg |
| High Light: | shoes test machine,leather measuring machine |
||

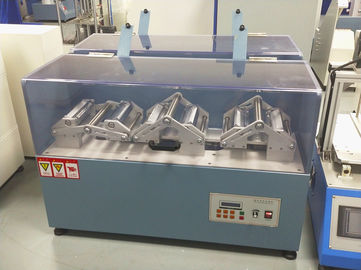

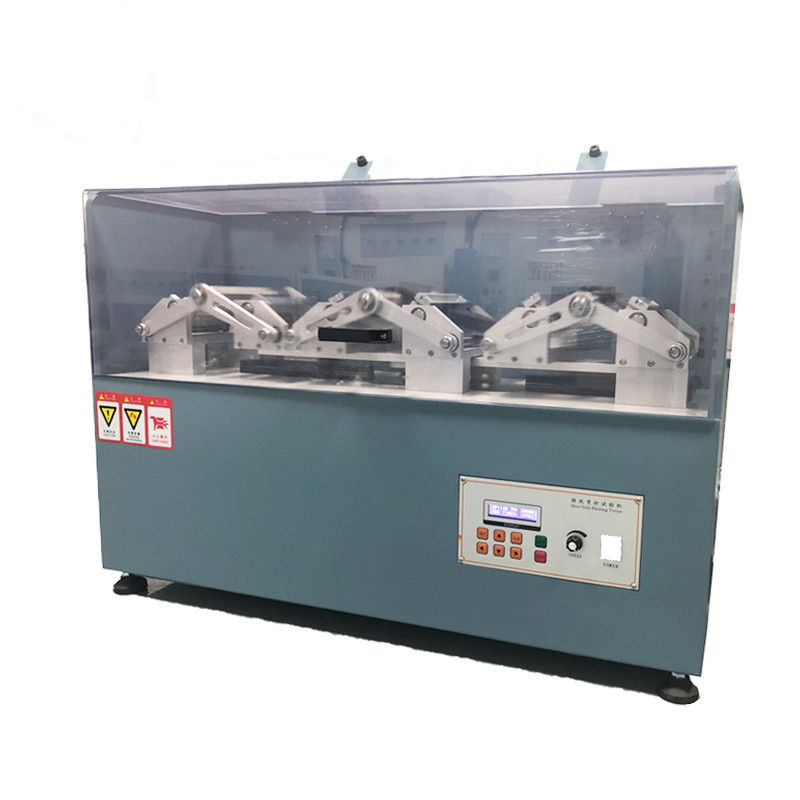

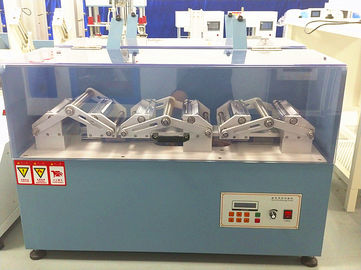

90° Flexing Angle EN Sole Flexing Testing Machine With 3pcs Sampling
Product Description:
This machine is used to determine the resistance of materials to cut growth during repeated flexing. It’s especially applicable to outsoles of footwear including sole constructions. Use a cutting tool to piece the specimen between the cleats at three points along the line of maximum bending stress. By the specified speed and times of 90°bending action to inspect the cuts growth with a measuring.
Specifications:
| Sampling | 3pcs |
| Flexing angle | 90° |
| Flexing Speed | 125-150CYCLES/MIN |
| Width of the grips | 144MM |
| Counter | LCD 0-999999 |
| Dimension(W*D*H) | 100*53*30CM |
| Weight | 98kg |
| Power | AC220V,3A |
Comply to standard: EN 344 ; ISO 17707
