Product Details:
Payment & Shipping Terms:
|
| Product Name: | EN 344 Safety Shoe Anti-static Tester For Complete Shoes Or Shoe Material | Output Voltage Range: | 100V/250V/500V/1000V |
|---|---|---|---|
| Resistance Setting: | 100KΩ~9999MΩ | Test Time Setting: | 0.3s~999.9s |
| Delay Alarm Time: | 0~999.9s, Resolution 0.1s | Gear Switching Time: | 0.2s~999.9s, Resolution 0.1s |
| Memory Group: | 50 | Output Mode: | Continuous Output Mode, Time-sharing Output Mode |
| Power Supply: | 220V | Key Words: | Anti-static tester |
| High Light: | shoes test machine,leather measuring machine |
||

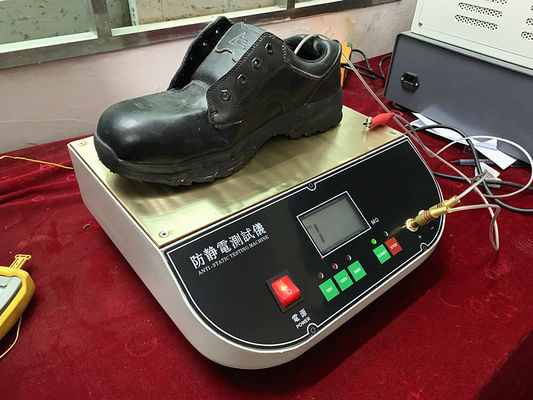

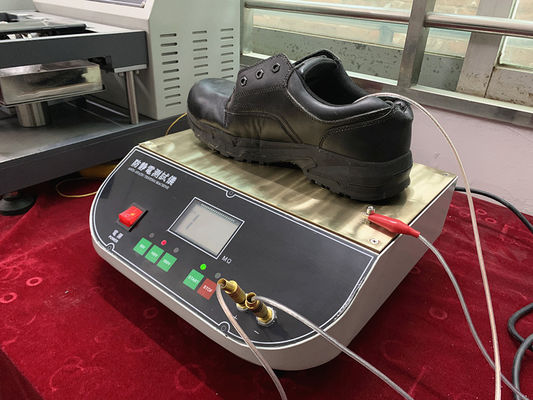

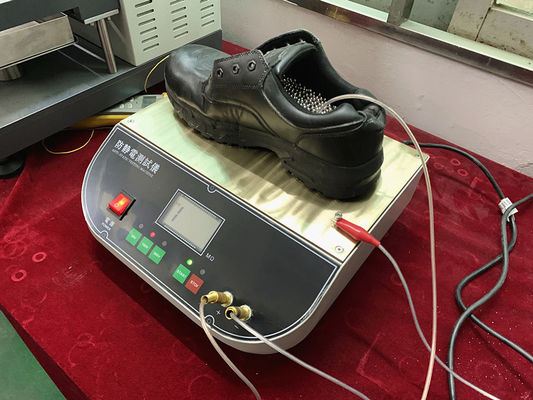

EN 344 Safety Shoe Anti-static Tester for Complete Shoes or Shoe Material
Usage:
It's suitable for testing resistance of complete shoes or shoe material,to realize sample static disperse effect.
Test standards:
SATRA—TM240,EN-344,GB/T 4386,ANSI Z41,ISO20345,ISO08782,GB/T20991,GB4385
ZL-2207 Safety shoes anti-static tester.wps
Specification:
| Output voltage range | 100V/250V/500V/1000V |
| Resistance setting | 100KΩ~9999MΩ |
| Test time setting | 0.3s~999.9s |
| Delay alarm time | 0~999.9s, resolution 0.1s |
| Failure time | 0~999.9s, resolution 0.1s |
| Gear switching time | 0.2s~999.9s, resolution 0.1s |
| Memory group | 50 |
| Output mode | continuous output mode, time-sharing output mode |
| Power supply | 220V |
| Weight | 15KG |
| Standard configuration | 5mm stainless steel beads 4kg, or 4kg weight |
