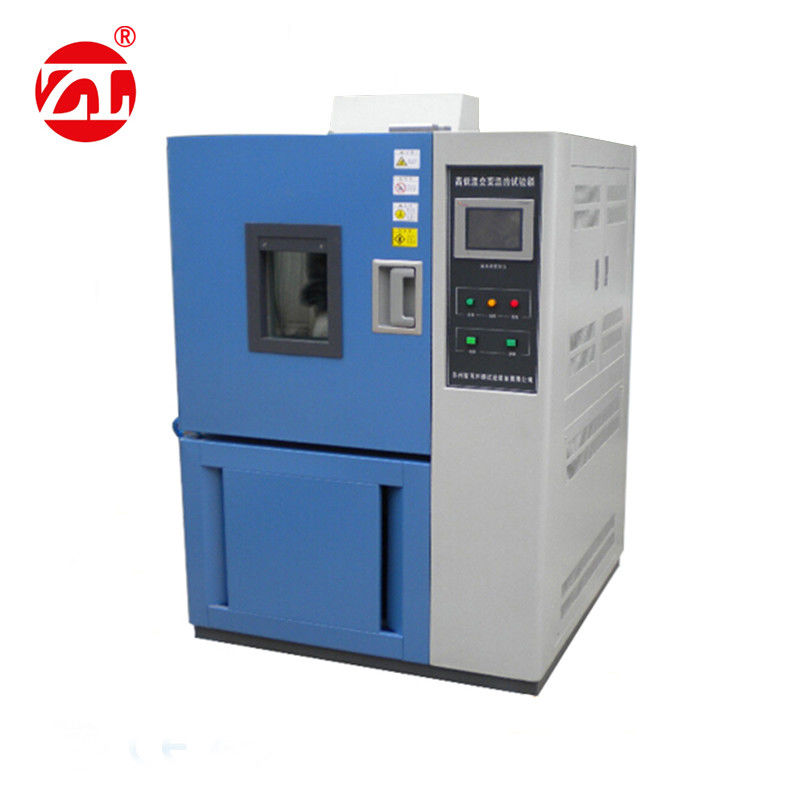

Three Phase Environmental Test Chamber / Temperature And Humidity Test Chamber

Three Phase Environmental Test Chamber / Temperature And Humidity Test Chamber
Three Phase Environmental Test Chamber / Temperature And Humidity Test Chamber
video play

Large Image :  Three Phase Environmental Test Chamber / Temperature And Humidity Test Chamber

Product Details:
Place of Origin: Guangdong,China
Brand Name: Zhongli
Certification: ISO,CE
Model Number: ZL-6019
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packaged in wooden case (fumigation free)
Delivery Time: 7~10 days after order confirmed
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Inner Size D*W*H:: 40*50*40 Cm Temperature:: -40oC To 150oC
Timer:: 0.1 To 999.9 (S,M,H)adjustable Cooling Time:: 25oC To -70oC About 80min
Heating-up Time:: -40oC To 100oC About 55min Sensor:: Platinum Resistance PT100Ω/MV
Environmental Temperature:: 5oC To 30oC ≤85%R.H Inside Material:: SUS304 High-quality Stainless Steel Light Board
Outer Material:: High-quality Carbon Steel Plate
High Light:

temperature humidity test chamber

,

impact test equipment

ZL-6019 High and Low Temperature Test Chamber Environmental Test Chamber





Equipment summary:



ZL-6019 High And Low Temperature Test Chamber can test the material property in high and low

temperature, such as electrical, electronic products, as well as their original devices, The testing equipment is mainly made according to the national standard and user-defined requirements, it simulate the environment to test proformance of material as well as other relevant characteristics of physical at low temperature or high temperature, Through testing to determine product performance whether it is still be able to meet the intended requirements.



Corresponding standard:



1. GB 10589-89 low temperature testing condition
2. GB 10592-89 high temperature testing condition
3. GB 11158-89 high temperature testing condition
4. GB/T5170.2-1996 basic parameters of environmental testing method for Electrical and

electronic products,
5. GB2423.1-89 The basic test regulation for electrical and electronic products, Test A: low-temperature

test method
6. GB2423.2-89 The basic test regulation for electrical and electronic products, Test B: high-temperature

test method
7. The basic test regulation for electrical and electronic products, Test: high-low-temperature test method


Applicable industries:



Applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments,food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.



Technical parameters:



Model ZL-6019 High And Low Temperature Test Chamber
Inner size D*W*H 40*50*40 cm 40*50*50 cm 50*60*50 cm
index temperature -40oC to 150oC
fluctuate/uniformly ≤±0.5oC /.+2oC to 3oC
Heating-up time -40oC to 100oC about 55min
Cooling time 25oC to -70oC about 80min
Control system controller LED digital P,I,D, +S,S,R.microcomputer controller
accuracy

Setting accuracytemperature ±0.1oC,directed

accuracytemperature ±0.1oC,resolution ±0.1oC

sensor Platinum resistance PT100Ω/MV
Heating system

Independent system, nickel-chromium alloy

electric heating type heater

Cooling system

Totally enclosed air-cooled single-stage compression

refrigerate mode / original

from French "Taikang" / totally enclosed air-cooled

re-compression refrigerate mode

Circulatory system

Temperature, low-noise, air-conditioning-type motor.

Multi-vane centrifugal wind wheel

material Outer material

High-quality carbon steel plate. Phosphide electrostatic

spray treatment / SUS304 stainless steel hairline treatment

Inside material SUS304 High-quality stainless steel light board
Insulation material Rigid polyurethane foam, ultra-fine glass fiber cotton
insulation

Double-resistant high-temperature aging of silicone

rubber seal

Standard collocation

a set of Multi-heated glass window attached lighting,

testing product shelf 2 pcs, test leads holes (25,50 mm) 1 pcs

Protector

Leak current, short circuit, over temperature, motor

overheating, over-pressure compressor, overload,

over-current protection

Timer 0.1 to 999.9 (S,M,H)adjustable
Voltage AC380V±10%, 50±0.5Hz Three-phase five-wire system
environmental temperature 5oC to 30oC ≤85%R.H

annotation
a. Above data were measured at temperature (QT) 25oC and no-load condition.
b. Can be customized non-standard-type high-low-temperature testing mechine according

to uses requirements
