Product Details:
Payment & Shipping Terms:
|
| Material: | Sheet Metal + Spray Paint | Color: | White |
|---|---|---|---|
| Power Supply: | 80V Three-phase | Air Pressure: | 1kg/cm2 |
| Drying Test Temperature: | 15°C~50°C ±1°C | Drying Test Humidity: | 30% Or More |
| Wetting Test Temperature: | 40 ° C ± 2 ° C | Wetting Test Humidity: | 93%~100% Or More |
| Model: | ZL-6001C | Warranty: | 12 Month |
| Name: | Dry And Wet Composite Salt Spray Corrosion Test Chamber 60L 120L Nss Aass Cass | Fixed Condition Can Set Time: | DIN PT-100Ω (platinum Induction) |
| High Light: | 60L Corrosion Test Chamber,120L Corrosion Test Chamber,Cass Environmental Test Chamber |
||

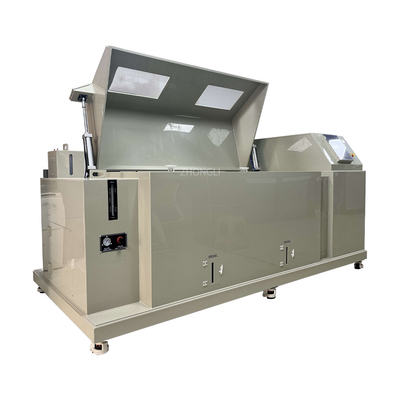

Dry And Wet Composite Salt Spray Corrosion Test Chamber 60L 120L Nss Aass Cass
Applications:
This equipment mainly used in testing materials like paints, electroplating, non-organic, pastry film, anode treatment and rust
prevention oil’s corrosion resistance performance
Features:
1.With auto & manual water supply system, auto water supplement when with low water level, ensure the testing continuously.
2.Temperature controller with digital control, P.I.D. Control with accuracy of 0.1℃.
3.Double over-temperature protection, alarm when with low water level, ensures operating safety.

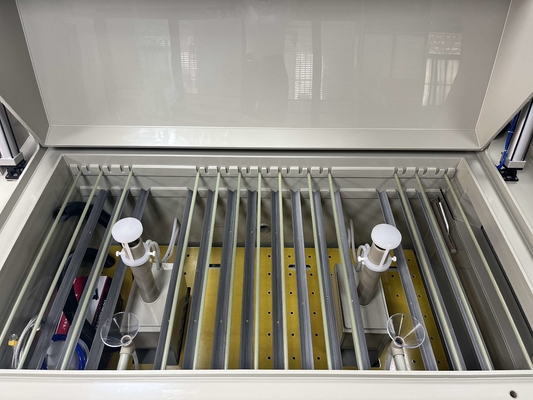

5. High precise glass nozzle control the salt mist, mist spray out uniformity through conical diffuser and free falling on the
specimen, ensure with no crystallization salt blocking.
Meeting Standards:
This machine complies with the specifications of IS, JASO M609 M610, SAE-J234, ASTM...etc.
Catalog about Environmental Test Chamber
Environmental Test Chamber.pdf
Testing capacity:
Type 90 (900 × 600 × 500) (W × D × H) mm
Type 120 (1200*1000*500)
Type 160 (1600*1000*500)
Type 200 (2000*1000*500)
The outer box space: according to the actual size
Power supply:380V three-phase 50HZ MAX 30A
| Salt spray laboratory: NSS, CASS | Laboratory: 10 ° C ~ 50 |
| Saturated air bucket: 47 ° C ± 1 ° C | |
| Wetting test | Temperature: 40 ° C ± 2 ° C |
| Humidity: 93%~100% or more | |
| Saturated air bucket: 47 ° C ± 1 ° C | |
| Drying test | Temperature: 15°C~50°C ±1°C |
| Humidity: 30% or more |
