| Power:: | Electronic | Usage:: | Universal Testing Machine |
|---|---|---|---|

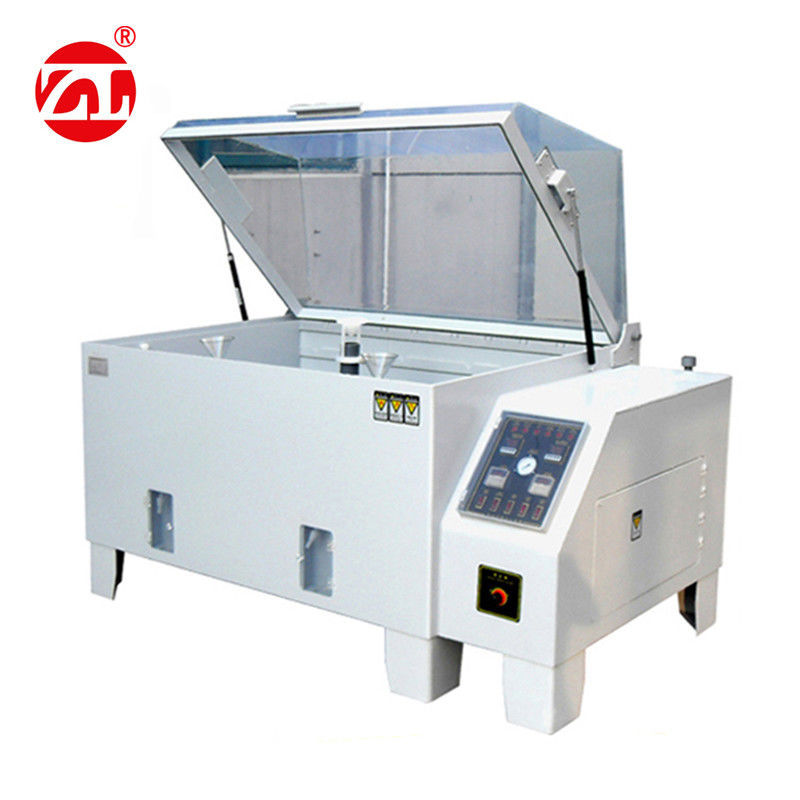

| Model:: | Jis Z 2371 2000 Methods Of Salt Spray Test Machine | Inside Box Size(cm):: | 90*60*50 |
| Outside Box Size(cm):: | 141*88*128 | Testing Room Temperature:: | Salt Test (NSS ACSS)35℃±1℃ |
| Pressure Barrel Temperature:: | Salt Test (NSS ACSS)47℃±1℃ | PH:: | 6.5~7.2 3.0~3.2 |
| Testing Room Capacity:: | 270L | Brine Tank Capacity:: | 25L |
| Air Pressure:: | 1.00±0.01kgf/cm2 | Spray Volume:: | 1.0~2.0ml/80cm2/h |
| High Light: | salt spray test chamber,salt spray test equipment |
||
A. Corresponding standard:
1.GB/T 2423.17-1993 salt spray test
2.GB/T 2423.18-2000 salt spray test
3.GB/T 10125-1997 salt spray test
4.ASTM.B117-97 salt spray test
5.JIS H8502 salt spray test
6.IEC68-2-11 salt spray test
7.IEC68-2-52 1996 salt spray test
8.GB.10587-89 salt spray test
9. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
B.Technical parameters:
| Model | jis z 2371 2000 methods of salt spray testing machine | ||
| Inside box size(cm) | 90x60x50 | ||
| Outside box size(cm) | 141x88x128 | ||
| Testing room temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
| Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
| Brine temperature | 35℃±1℃ 50℃±1℃ | ||
| Testing room Capacity | 270L | ||
| Brine tank capacity | 25L | ||
| Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
| Air pressure | 1.00±0.01kgf/cm2 | ||
| Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) | ||
| Testing room relative humidity | 85% above | ||
| PH | 6.5~7.2 3.0~3.2 | ||
| Spray form | Programmable spray (Including continuous and intermittent spray) | ||
| power | AC220V1Φ15A | ||
