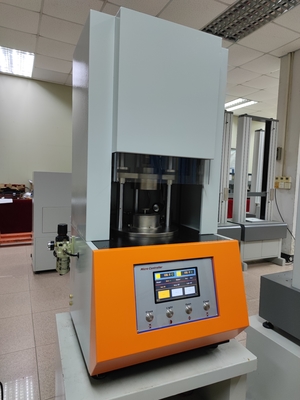

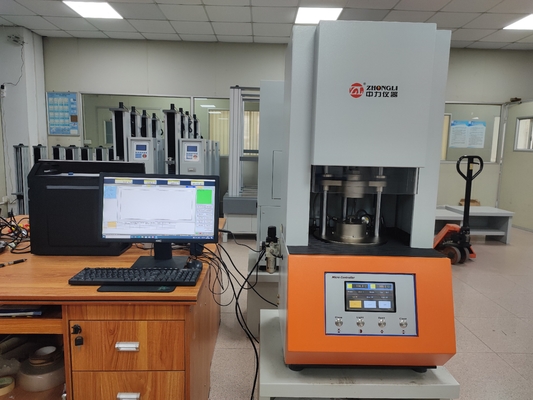

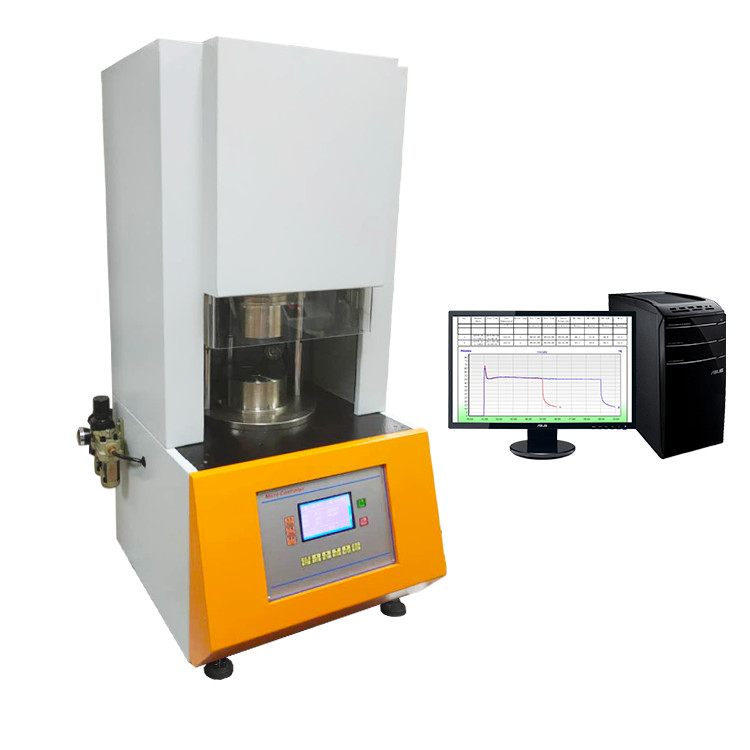

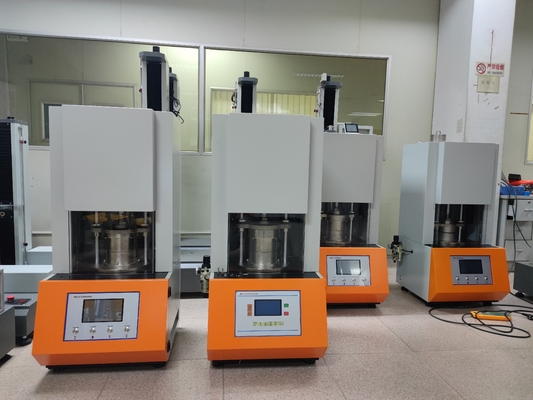

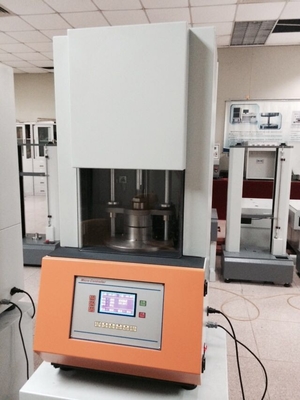

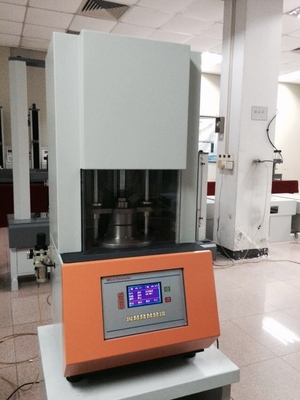

Computer Controlled Viscosity Testing Machine Mooney Viscometer For Rubber

Computer Controlled Viscosity Testing Machine Mooney Viscometer For Rubber

Rubber Testing Machine:

rubber machine.pdf

●Curve:

• Viscosity curve
• Early scorch curve
• Stress relaxation curve
• Upper and lower die temperature curve

●Data:

• VM, MOONEY viscosity test, the lowest viscosity value in the last 30 seconds
• LM, MOONEY viscosity test, the lowest value from the test process to the end point
• The lowest value of MV, MOONEY viscosity and SCORCH test to the end point
• Scorch time of T3 T18 (S), T5 T35 (L)
• Vulcanization index of T18 3 T35 5 (L)
• TRLX stress relaxation time
• MRLX stress relaxation value

●Main Features:

• Viscosity and time axis can be switched automatically and set arbitrarily
• The computer does not need to insert any interface card, the wiring is simple, and the installation and maintenance are easy
• Easy to operate, users can automatically test, print and file automatically without touching the computer
• The computer automatically displays the test value/temperature and time, which is convenient for users to view
• All graphics can be set in different units (ib-in, kg-cm, N-m, dN-m, Moony)
• There are two modes of graphic range, automatic and manual, for you to choose
• The test data is stored in a database, which meets the needs of modernization
• With export and import functions, it is convenient for data transmission and storage
• More than 20 report items to meet various purposes

10 .Multiple curves can be displayed at the same time, and the cursor can be used to read any point data on the curve

11.The report items can be added or modified without omission

12. Windows operating system, support traditional/simplified/English/, convenient for international people to use

13. The circuit design adopts the PCB method that is not easy to fail, and makes the maintenance extremely convenient

14. Temperature control has PID automatic calculation function

15. The upper and lower mold cavities are easy to disassemble, easy to clean and maintain

16. After the test is over, the upper and lower molds are automatically opened, and the rotor is automatically ejected. It is very convenient to take out the rotor

17. The temperature and Mooney value can be freely set and corrected on the computer

●Main Technical Parameters:
