Product Details:
Payment & Shipping Terms:
|
| Product Name: | Computer Servo Type Universal Testing Machine Load Cell Tensile Testing Machine | Maximum Load: | 10 Ton |
|---|---|---|---|
| Tester Resolution: | Max Load 1/200000，constant The Resolution | Range Of Testing Speed: | 0.001～500mm/min |

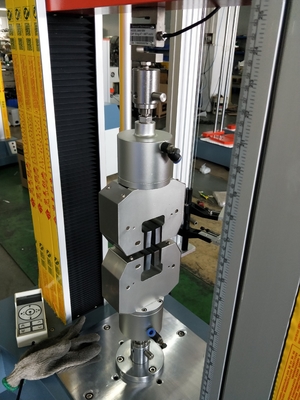

| Fixture: | A Set Of Tensile Fixture | Accurate Grade: | 1 Grade / 0.5 Grade |
| Effective Tensile Stroke: | 800mm | Key Words: | Compression Bending Shear Peel |
| High Light: | Load Cell Tensile Testing Machine,Computer Servo Type Tensile Testing Machine |
||
Equipment Overview:
ZL-8006A Computerized Servo Universal Material Testing Machine is a new type of material testing machine combining electronic technology and mechanical transmission. It has a wide and accurate loading speed and force measurement range, and has high precision in the measurement and control of load and displacement. And sensitivity, it can also carry out automatic control test of constant velocity loading and constant velocity displacement. The operation is simple and convenient, and it is especially suitable as a testing instrument for controlling product quality on the production line. This series of models is mainly suitable for non-metallic and metallic material tests with a test load of less than 50kN.
The Main Function:
It is mainly suitable for testing metal and non-metal materials, such as rubber, plastic, wire and cable, optical fiber cable, safety belt, safety belt, leather belt composite material, plastic profile, waterproof coil, steel pipe, copper material, profile, spring steel, Bearing steel, stainless steel (and other high-hardness steel), castings, steel plates, steel strips, tension, compression, bending, shearing, peeling, tearing, two-point extension (an extensometer is required), etc. Various tests.
Technical Parameters:
| Model | ZL-8006A |
| Maximum Load | 10000KG, 20000KG within the self selection |
| Accuracy Class | Level 0.5 |
| Effective Force Range | 0.4%～100% (Level 0.5) |
|
Force Measurement Accuracy |
Within ±1% of indicated value/Within ±0.5% of indicated value |
|
Testing Machine Resolution |
The maximum load is 1/200000, there is no division between inside and outside, and the resolution remains unchanged throughout the process |
| Load Cell |
Basic configuration: one tension and pressure sensor (maximum load) Extended configuration: multiple sensors can be added |
| Deformation Measurement System (Optional According To Requirements) |
Extended Configuration: large deformation: minimum gauge distance 10mm, Deformation Range: 800mm Extended Configuration: small deformation: gauge length 25mm, 50mm, 100mm; Deformation Range: 5mm, 10mm, 25mm |
