| Product Name: | ASTM D3330 Touch Screen Horizontal Tension Tester Tensile Testing Machines | Capacity Option: | 100KG |
|---|---|---|---|
| Measurement Accuracy: | ±1% | Resolution: | 1/200000 |
| Test Speed: | 0～300 Mm/min | Effective Stroke: | 600mm |
| Test Space: | 120 Mm | Units Of Force: | Kgf, Gf, N, KN, Lbf |
| Stress Unit: | MPa, KPa, Kgf/cm2, Lbf/in2 | ||
| High Light: | ASTM D3330 Tensile Testing Machines,Touch Screen Horizontal Tensile Testing Machines |
||
Equipment Characteristics:
1. The horizontal tensile tester box is treated with electrostatic paint, and the overall design is reasonable with a tight structure,
Safe, stable, and accurate operation, with a beautiful and elegant overall appearance.
2. Adopting a double guide rod structure, it has the advantages of good stability, wide applicability, and convenient use.
3. Infinite speed regulation, switching between jog and automatic control, and limit stop function.
Product Attributes:
This machine is a newly designed and developed microcomputer based tensile (compressive) force testing machine. Our company is going to change traditional material testing machines
The disadvantages of the platform are bulky, complex operation, and single performance. The structure adopts an aluminum extruded sealing plate treated with silicone baking paint with high precision built-in
Degree, low resistance, Taiwan TBI ball screw and guide column; The measurement and control system has high data collection and calculation speed, and product performance
Stable and reliable, with high measurement accuracy and easy to understand operation.
Machine features:
The machine includes a thermal printer that can automatically output test results;
★ Unit arbitrary switching: Force: kN/N/kgf/gf/t/lbf,
Displacement: mm/cm/in;
★ Automatic return function;
★ Overload protection function can be set;
★ Multiple testing methods such as fixed load and positioning displacement.
Technical Parameters:
| Capacity Option | 100KG |
| Measurement Accuracy | ±1% |
| Resolution | 1/200000 |
| Test Speed | 0～300 mm/min |
| Effective Stroke | 600mm |
| Test Space | 120 mm |
| Units of Force | kgf, gf, N, kN, lbf |
| Stress Unit | MPa, kPa, kgf/cm2, lbf/in2 |
| Stop Mode | Left and right limit safety setting, test piece breakpoint sensing |
| Result Output | Miniature printer |
| Power | Adjustable speed motor |
| Optional | Tension clamp (conventional) |
| Machine Weight | About 40 KG |
| Power Supply | 1PH, AC220V, 50/60Hz |

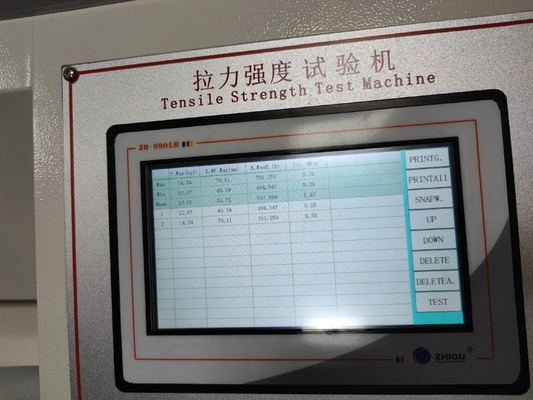

Test Screen:
