Product Details:
Payment & Shipping Terms:
|
| Product Name: | Touch Screen Desktop Tensile Testing Machine With Single Column | Model: | ZL-8004B |
|---|---|---|---|
| A.The Maximum Allowable Load Of The Machine: | 200KG American Transmission High Precision Sensor | Load Cell: | 1KG, 5KG, 10KG, 20KG, 50KG, 100KG/200KG Can Be Selected By Yourself |
| Load Measurement Accuracy: | Load Cell + ZL-2000 Display ±0.5% (5%-100% Of Full Scale) | Data Sampling Frequency: | 200times/sec |
| Control System: | Test Speed 50~300 Mm/min Stepless Speed Regulation And 5 Gears Constant Speed(50, 100, 200, 250, 300) Or Customer Specified. | G.Maximum Test Space: | About 600mm (excluding Fixtures, Special Test Spaces Can Also Be Customized According To Customer Needs) |
| Power System: | AC Motor | Power: | 120W |
| High Light: | Electronic Tensile Testing Machine,Computerized Desktop UTM Machine,120W UTM Machine |
||

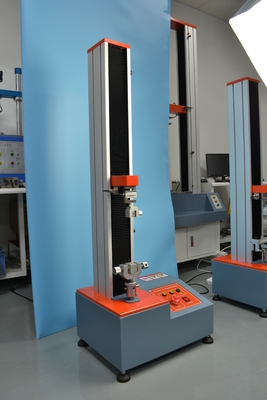

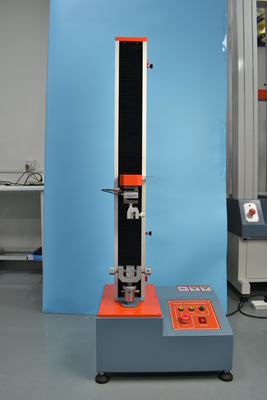

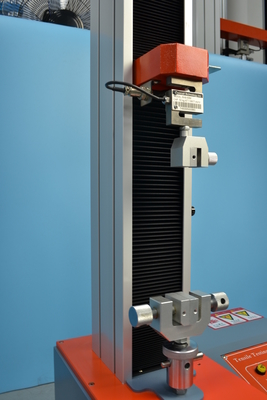

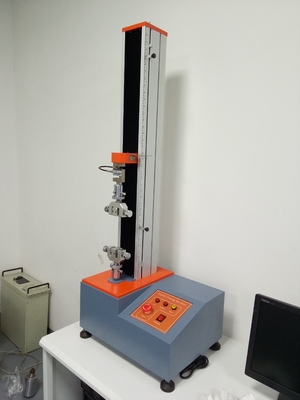

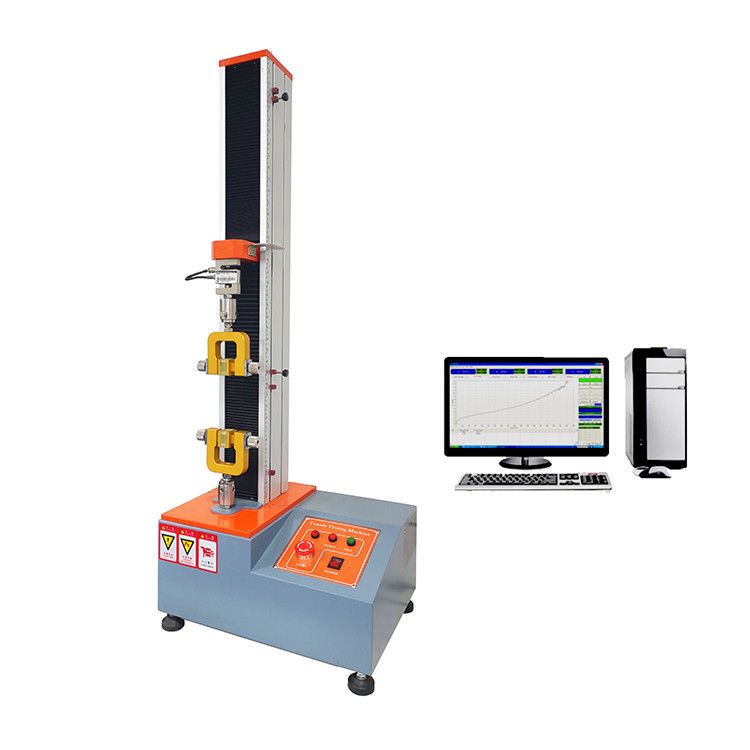

Touch Screen Desktop Tensile Testing Machine With Single Column
Standard:
ASTM D1004, ASTM D882, ASTM D638, ASTM D1693, ASTM D3330
Application Industry:
Widely used in various industries such as wire and cable, hardware, electronic appliances, packaging and printing, medical equipment, auto parts, textile and leather, clothing and footwear, rubber and plastic products, colleges and universities; scientific research laboratories; commodity inspection and arbitration, technical supervision departments, etc. It is the basic equipment for quality management and physical property testing
Technical Parameters:
Load of The Machine |
200KG American Transmission High Precision Sensor |
| B. Load Cell | 1KG, 5KG, 10KG, 20KG, 50KG, 100KG/200KG can be selected by yourself |
| C. Load Measurement Accuracy | load cell + ZL-2000 display ±0.5% (5%-100% of full scale) |
| D. Unit Switching | Kg, Lb, N |
| E. Resolution | 1/50000 |
| F. Measuring System: | Load cell + ZL-2000 |
(Excluding Fixtures): |
about 600mm (excluding fixtures, special test spaces can also be customized according to customer needs) |
| H. Control System | test speed 50~300 mm/min stepless speed regulation and 5 gears constant speed(50, 100, 200, 250, 300) or customer specified. |
| I. Data Sampling Frequency | 200times/sec |
| J.The machine includes a thermal printer, which can automatically output the test results. | |
| K. Safety Device | overload ,emergency stop device, upper and lower travel limit device, leakage protection device. |
| L. Breakpoint ratio setting range: 0~99% It can be conveniently set according to the test needs of different test pieces, so as to realize the stop state at different positions. | |
| M. It can store the results of 10 test reference points, automatically calculate the average value, automatically grab the maximum value, and the force value when it breaks. | |
| N. Display Mode |
dark blue LCD screen with English display, thin-film touch keys, with the following functions: ①.Single test, manual 10-point statistics, and automatically calculate the average value, breaking value; ②. Multi-unit automatic switching such as kgf, Lbf, N; ③. Free point selection function; ④. With multi-function correction function; ⑤. Automatic printing function; ⑥.Using 24-bit AD acquisition, resolution 1/20000; ⑦.The number of decimal places can be arbitrarily selected from 0 to 4; ⑧.Power-on password protection function, which can effectively prevent non-operating personnel from starting the machine; ⑨.The break point ratio is from 0 to 99%, and the user can set the appropriate break stop time according to different materials. ⑩.The overload protection function can be set to effectively prevent the machine from overloading; |
| O.The appearance is beautiful, and the column shell is made of aluminum alloy. | |
| P.Power system | AC motor |
| Q.Power | 120W |
| R.Volume | 450×550×1400mm |
| S.Weight | 75kg |
| T.Power supply | 1Φ, 220V, 15A |
