Product Details:
Payment & Shipping Terms:
|
| Product Name: | Touch Screen Desktop Tensile Testing Machine With Single Column | Model: | ZL-8004A |
|---|---|---|---|
| Maximum Load: | 200KG High-precision Sensor | Capacity Selection: | 1KG, 5KG, 10KG, 20KG, 50KG, 100KG, 200KG Can Be Selected By Yourself |
| Unit Switching: | Kg, Lb, N | Measuring System: | Load Cell + ZL-2000 |
| Load Measurement Accuracy: | Load Cell + ZL-2000 Display ±0.5% (5%-100% Of Full Scale) | Resolution: | 1/50000 |
| Power System: | AC Motor + Holip Frequency Converter | Power: | 120W |
| Volume: | 450×550×1400mm | Weight: | 75kg |
| High Light: | Tensile Testing Machine 120W,Tensile Testing Machine With Single Column,450×550×1400mm universal testing machine |
||

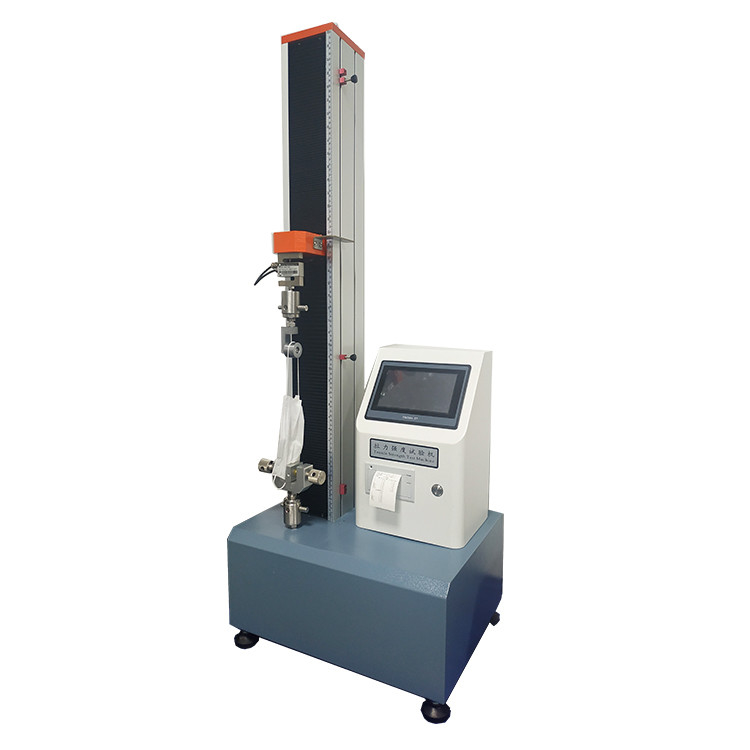

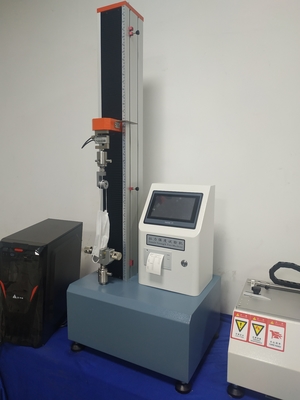

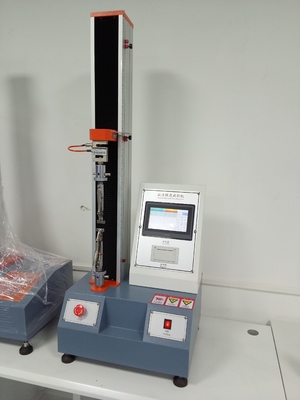

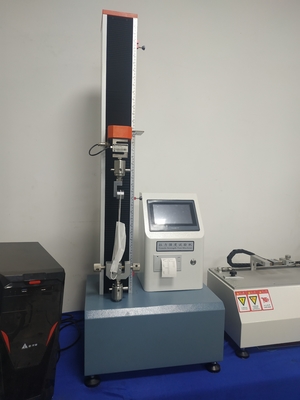

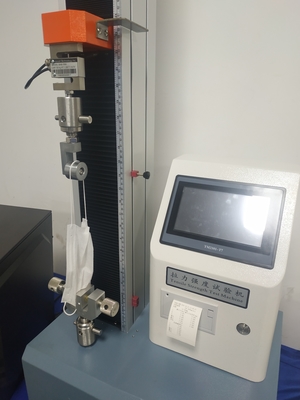

Touch Screen Desktop Tensile Testing Machine With Single Column
The Standard:
ASTM D1004, ASTM D882, ASTM D638, ASTM D1693, ASTM D3330
Application Industry:
Widely used in various industries such as wire and cable, hardware, electronic appliances, packaging and printing, medical equipment, auto parts, textile and leather, clothing and footwear, rubber and plastic products, colleges and universities; scientific research laboratories; commodity inspection and arbitration, technical supervision departments, etc. It is the basic equipment for quality management and physical property testing
Technical Parameters:
| Model | ZL-8004A |
| Maximum Load | 200KG high-precision sensor |
| Capacity Selection | 1KG, 5KG, 10KG, 20KG, 50KG, 100KG, 200KG can be selected by yourself |
| Unit Switching | Kg, lb, N |
| Measuring System | Load cell + ZL-2000 |
| Load Measurement Accuracy | Load cell + ZL-2000 display ±0.5% (5%-100% of full scale) |
| Resolution | 1/50000 |
|
Maximum Test Space (Excluding Fixtures) |
About 500mm (excluding clamps, special test spaces can also be customized according to customer needs) |
| Effective Test Width | The distance between the test column and the center of the sensor is 60mm. |
| Test Speed | 50-300mm/min stepless speed regulation and 5 gears constant speed (special test speed can also be customized according to customer needs) |
| Data Sampling Frequency | 200times/sec |
| The machine includes a thermal printer, which can automatically output the test results. | |
| It can store 10 test reference point results, automatically calculate the average value, automatically grab the maximum value, and the force value when it breaks. | |
| Breakpoint Ratio Setting Range | 0~99% It can be conveniently set according to the test needs of different test pieces, so as to realize the stop state at different positions. |
| Safety Device | overload , emergency stop device, upper and lower travel limit device. |
| The appearance is beautiful, and the column shell is made of aluminum alloy. | |
| Power System | AC motor + Holip frequency converter |
| Power | 120W |
| Volume | 450×550×1400mm |
| Weight | 75kg |
| Power Supply | 1Φ, 220V, 15A |
