Product Details:
Payment & Shipping Terms:
|
| Product Name: | Single Column Rubber Tensile Strength Testing Machine Utm Tensile Test | Model: | ZL-8003B |
|---|---|---|---|
| Accuracy Class: | Level 0.5 | Effective Force Range: | 0.4%～100% (Level 0.5) |
| Maximum Load: | 100N, 200N, 500N, 1KN, 2KN, 5KN, Optional Within | Test Speed Range: | 0.01～500mm/min |
| Displacement Measurement Accuracy: | Within ±0.5% Of Indicated Value/Within ±0.2% Of Indicated Value | Test Bench Safety Device: | Electronic Limit Protection |
| High Light: | Single Column Rubber Tensile Testing Machine,200N universal testing machine,500mm/min Tensile Testing Machine |
||

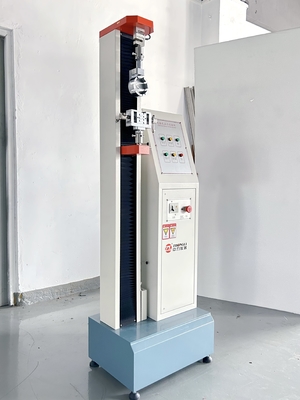

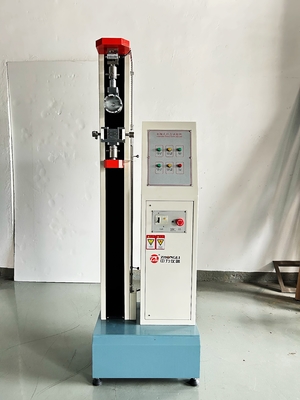

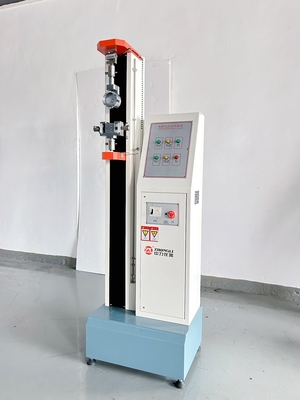

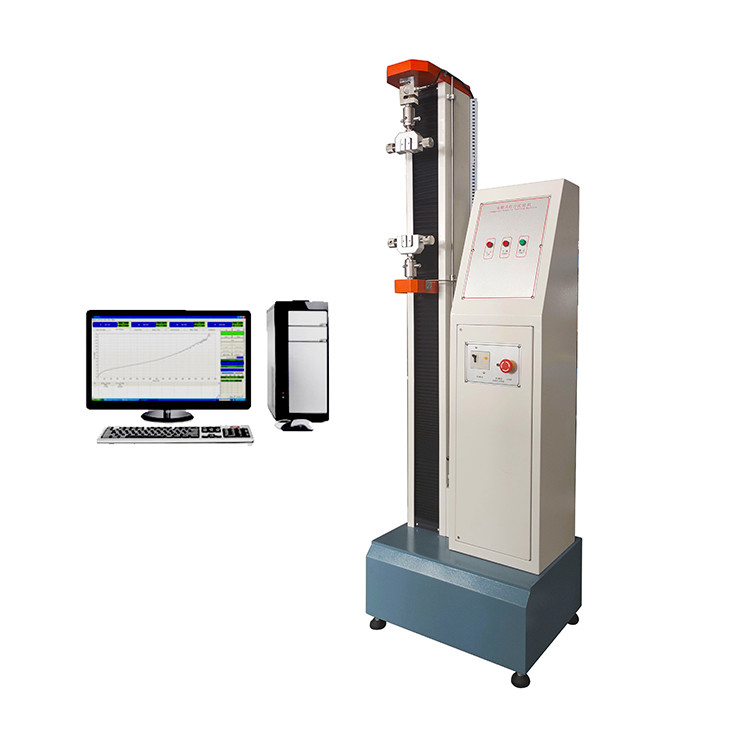

Single Column Rubber Tensile Strength Testing Machine Utm Tensile Test
Standard:
ISO7500/1, ASTM D638, ASTM D412, JIS B7721, JIS B7733, EN 1002-3, BS 1610,ISO13997:1999,ISO139352,ASTM D2261
Application Industry:
Widely used in wire and cable, hardware, footwear, electronic appliances, packaging and printing, medical equipment, auto parts, textile and leather, clothing and footwear, rubber and plastic products, colleges and universities; scientific research laboratories; commodity inspection and arbitration, technical supervision departments, etc. It is the basic equipment for quality management and physical property testing
Technical Parameters:
| Model | ZL-8003B |
| Maximum Load | 100N, 200N, 500N, 1KN, 2KN, 5KN, optional within |
| Accuracy Class | Level 0.5 |
| Effective Force Range | 0.4%～100% (Level 0.5) |
|
Force Measurement Accuracy |
Within ±1% of the indicated value / Within ±0.5% of the indicated value |
| Test Machine Resolution | The maximum load is 1/200000, there is no division between inside and outside, and the resolution remains unchanged throughout the process |
| Load Cell |
Basic configuration: one tension and pressure sensor (maximum load) Extended configuration: multiple sensors can be added |
| Effective Test Width | 400mm (can be widened according to customer requirements) |
| Effective Tensile Space | 400, 500, 600mm, 800mm (can be increased according to customer requirements) |
| Test Speed Range | 0.01～500mm/min |
| Displacement Measurement Accuracy | Within ±0.5% of indicated value/Within ±0.2% of indicated value |
|
Accuracy of Deformation Measurement |
Within ±0.5% of the indicated value (large or small deformation can be selected according to customer requirements) |
| Test Bench Safety Device | Electronic limit protection |
| Table Lifting Device | Fast/slow two speed automatic control, jogging possible |
| Test Bench Return Function | Manual or automatic two options, automatic or manual return to the initial position of the test at the highest speed after the test |
| Overload Protection | 10% more than the maximum load, the machine automatically protects |
| Fixture Configuration | A set of tensile fixtures |
| Expandable Configurations | Jigs and accessories can be selected according to the test standard or test specimen provided by the customer or specially designed at an additional cost. |
| Main Machine Size | 550×420×1800mm(L*W*H) |
| Motor Type | Taiwan TECO servo motor (Panasonic servo motor optional) + drive + Taiwan high precision ball screw |
| Power Supply | 220V, 50HZ |
| Power | 0.75KW (according to different force value requirements, different power motors are standard) |
