| Product Name: | Computer Servo Universal Tensile Testing Machine With Large Deformation | Max Load: | Optional Within 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN |
|---|---|---|---|
| Effective Force Range: | 0.4%～100% (Level 0.5) | Force Measurement Accuracy: | Within ±1% Of Indicated Value/Within ±0.5% Of Indicated Value |
| Measuring Accuracy: | Display The Value ±1％/Display The Value±0.5％ | Accuracy Class: | Level 0.5 |
| Fixture: | A Set Of Tensile Fixture | Key Words: | Servo Tensile |
| High Light: | 2KN Universal Tensile Testing Machine,Computer Servo tensile testing equipment,utm machine With Large Deformation |
||

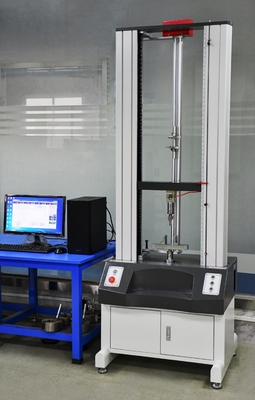

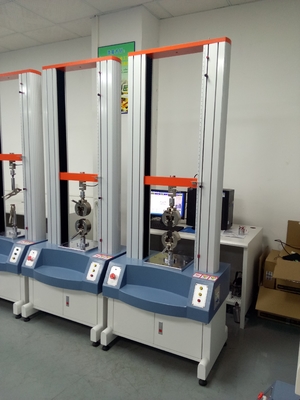

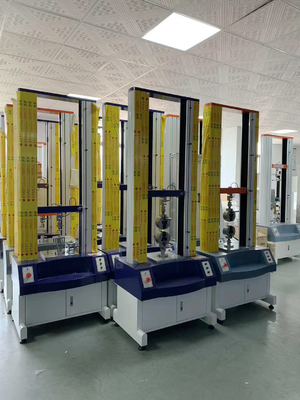

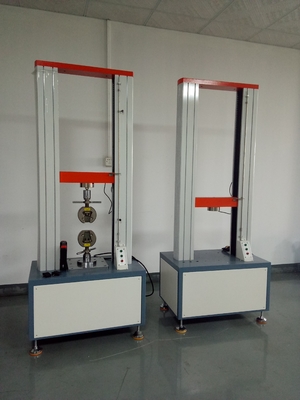

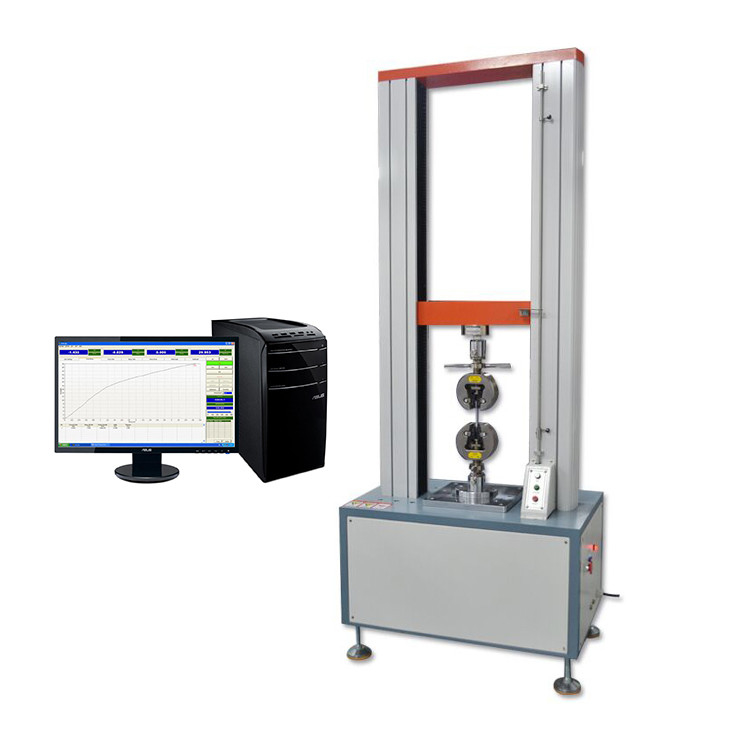

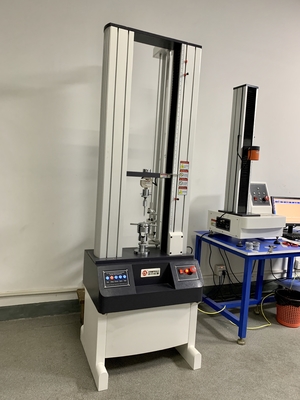

Computer Servo Universal Tensile Testing Machine With Large Deformation
Download Brief:
ZL-8001A Computer servo testing machine.pdf
Corresponding Standard :
ASTM D638-98, ASTM D790-99, ASTM D695-96, ISO527-93, ISO178-93, ISO14125-1998E, ISO604, DIN53-504, DIN53-452.
ZL-8001B Computer Servo Universal Material Testing Machine is a new type of material testing machine combining electronic technology and mechanical transmission. It has a wide and accurate loading speed and force measurement range, and has high precision and sensitivity for load and displacement measurement and control. , It can also carry out automatic control tests of constant velocity loading and constant velocity displacement. It is easy and convenient to operate, and is especially suitable as a testing instrument for controlling product quality on the production line. This series of models is mainly suitable for non-metallic and metallic material tests with a test load of less than 10KN.
The Main Function:
It adopts imported photoelectric encoder for displacement measurement, and the controller adopts embedded single-chip microcomputer structure with powerful built-in measurement and control software, which integrates measurement, control, calculation and storage functions. It has the functions of automatic calculation of stress, elongation (need to be equipped with extensometer), tensile strength and elastic modulus, and automatic statistics of results; automatic recording of force or elongation at the maximum point, fracture point and specified point; dynamic display of test process and test curve by computer, and data processing, and data re-analysis and editing by graphic processing module for curve enlargement after the test, and printable reports. Product performance reaches international advanced level.
Main Feature:
Imported photoelectric encoder is used for displacement measurement, the controller adopts embedded single-chip microcomputer structure, built-in powerful measurement and control software, which integrates measurement, control, calculation and storage functions. It has the function of automatically calculating stress, elongation (extensometer needs to be added), tensile strength and elastic modulus, and automatically counts the results; automatically records the force value or elongation of the maximum point, breaking point, and designated point; uses a computer for testing The process and test curves are dynamically displayed, and data processing is performed. After the test, the graph processing module can be used to zoom in on the curve for data re-analysis and editing, and the report can be printed. The product performance has reached the international advanced level.
echnical Parameters:
| Model | ZL-8001B |
| Maximum Load | Optional within 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN |
| Accuracy Class | Level 0.5 |
| Effective Force Range | 0.4%～100% (Level 0.5) |
|
Force Measurement Accuracy |
Within ±1% of indicated value/Within ±0.5% of indicated value |
|
Testing Machine Resolution |
The maximum load is 1/200000, there is no division between inside and outside, and the resolution remains unchanged throughout the process |
| Load Cell |
Basic configuration: one tension and pressure sensor (maximum load) Extended configuration: multiple sensors can be added |
| Deformation Measurement System (Optional According To Requirements) |
Extended configuration: large deformation: minimum gauge distance 10mm, deformation range: 800mm Extended configuration: small deformation: gauge length 25mm, 50mm, 100mm; deformation range: 5mm, 10mm, 25mm |
| Effective Test Width | 390mm (can be widened according to customer requirements) |
| Effective Stretching Space | 400, 500, 600mm, 800mm (can be increased according to customer requirements) |
| Test Speed Range | 0.01～500mm/min |
| Displacement Measurement Accuracy | Within ±0.5% of indicated value/Within ±0.2% of indicated value |
| Deformation Measurement System(Optional According to Requirements) |
Extended configuration: large deformation: minimum gauge distance 10mm, deformation range: 800mm Extended configuration: small deformation: gauge length 25mm, 50mm, 100mm; deformation range: 5mm, 10mm, 25mm |
| Deformation Measurement Accuracy | Within ±0.5% of the indicated value (large or small deformation can be selected according to customer requirements) |
| Test Bench Safety Device | Electronic limit protection |
| Test Bench Lifting Device | Fast/slow two speed automatic control, jogging possible |
| Bench Return Function | Manual or automatic two options, automatic or manual return to the initial position of the test at the highest speed after the test |
| Overload Protection | 10% more than the maximum load, the machine automatically protects |
| Fixture Configuration | A set of tensile fixtures |
| Host Size | 800*550*2210mm(L*W*H) |
| Power System | Taiwan TECO servo motor (Panasonic servo motor optional) + drive + Taiwan high precision ball screw |
| Power Supply | 220V, 50HZ |
| Power | 0.4KW (according to different force value requirements, different power motors are standard) |
| Host Weight | 300 kg (approximately) |
