Product Details:
Payment & Shipping Terms:
|
| Product Name: | UTM Double Column Tensile Machine Universal Material Tensile Testing Equipment | Max Load: | Optional Within 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN |
|---|---|---|---|
| Effective Force Range: | 0.4%～100% (Level 0.5) | Force Measurement Accuracy: | Within ±1% Of Indicated Value/Within ±0.5% Of Indicated Value |
| Measuring Accuracy: | Display The Value ±1％/Display The Value±0.5％ | Accuracy Class: | Level 0.5 |
| Fixture: | A Set Of Tensile Fixture | Key Words: | Servo Tensile |
| High Light: | 20KN Tensile Testing Equipment,UTM Double Column Tensile Machine,Universal Material Tensile Testing Equipment |
||

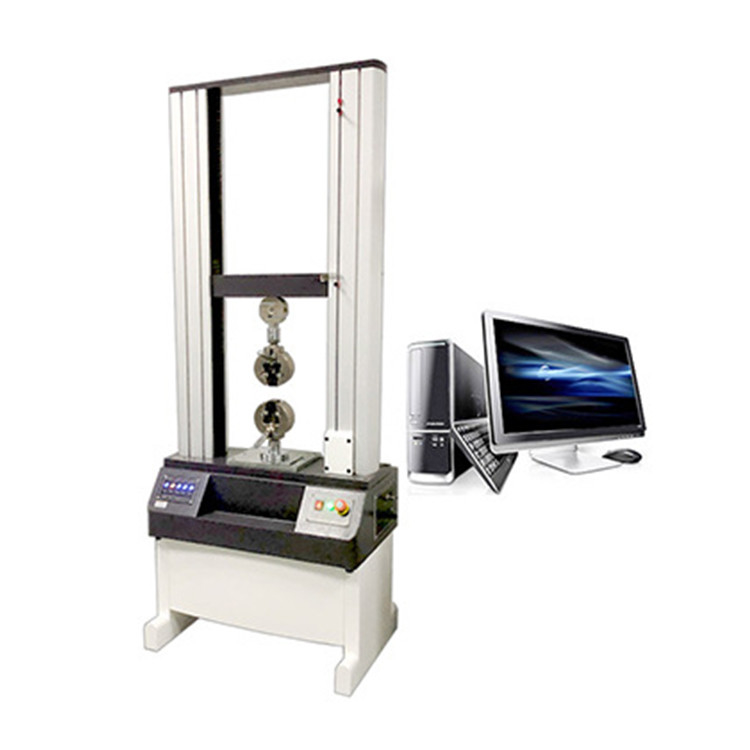

UTM Double Column Tensile Machine Universal Material Tensile Testing Equipment
Download Brief:
ZL-8001A Computer servo testing machine.pdf
Application Industry:
Widely used in metrological quality inspection; Clothing and footwear industry; Rubber and plastic; Metallurgical steel; Mechanical manufacturing; Electronic appliances; Automobile production; Textile chemical fiber; Wire and cable; Packaging materials and food; Instruments and meters; Medical devices; Civil nuclear energy; Civil aviation; Higher education institutions; Research and Experimental Institute; Commercial inspection, arbitration, and technical supervision departments; Building materials ceramics; Petrochemical industry; Other industries.
Corresponding Standard :
ASTM D638-98, ASTM D790-99, ASTM D695-96, ISO527-93, ISO178-93, ISO14125-1998E, ISO604, DIN53-504, DIN53-452.
Technical Parameters:
| Model | ZL-8001A |
| Maximum Load | Optional within 100N, 200N, 500N, 1KN, 2KN, 5KN, 10KN, 20KN |
| Accuracy Class | Level 0.5 |
| Effective Force Range | 0.4%～100% (Level 0.5) |
|
Force Measurement Accuracy |
Within ±1% of indicated value/Within ±0.5% of indicated value |
|
Testing Machine Resolution |
The maximum load is 1/200000, there is no division between inside and outside, and the resolution remains unchanged throughout the process |
| Load Cell |
Basic configuration: one tension and pressure sensor (maximum load) Extended configuration: multiple sensors can be added |
| Effective Test Width | 390mm (can be widened according to customer requirements) |
| Effective Stretching Space | 400, 500, 600mm, 800mm (can be increased according to customer requirements) |
| Test Speed Range | 0.01～500mm/min |
| Displacement Measurement Accuracy | Within ±0.5% of indicated value/Within ±0.2% of indicated value |
| Deformation Measurement System(Optional According to Requirements) |
Extended configuration: large deformation: minimum gauge distance 10mm, deformation range: 800mm Extended configuration: small deformation: gauge length 25mm, 50mm, 100mm; deformation range: 5mm, 10mm, 25mm |
| Deformation Measurement Accuracy | Within ±0.5% of the indicated value (large or small deformation can be selected according to customer requirements) |
| Test Bench Safety Device | Electronic limit protection |
| Test Bench Lifting Device | Fast/slow two speed automatic control, jogging possible |
| Bench Return Function | Manual or automatic two options, automatic or manual return to the initial position of the test at the highest speed after the test |
| Overload Protection | 10% more than the maximum load, the machine automatically protects |
| Fixture Configuration | A set of tensile fixtures |
| Host Size | 800*550*2210mm(L*W*H) |
| Power System | Taiwan TECO servo motor (Panasonic servo motor optional) + drive + Taiwan high precision ball screw |
| Power Supply | 220V, 50HZ |
| Power | 0.4KW (according to different force value requirements, different power motors are standard) |
| Host Weight | 300 kg(approximately) |
