Product Details:
Payment & Shipping Terms:
|
| Product Name: | Temperature And Humidity Vibration Three Comprehensive Testing Chamber | Usage: | Aerospace, Aviation, Petroleum, Chemical Industry, Electronics, Communication |
|---|---|---|---|
| Stability: | Temperature: ±0.5℃ Humidity: ±2.5% RH | Uniformity: | Temperature: ≤±2℃ Humidity: ±3%RH |
| Test Machine Size: | Can Be Customized | Composition: | Test Chamber Box, Motion Connection System, Control System, Refrigeration/dehumidification System, Heating/humidification System, Air Duct System, Etc. |
| High Light: | Laboratory Temperature And Humidity Testing Chamber,Vibration Three Comprehensive Humidity Testing Chamber |
||

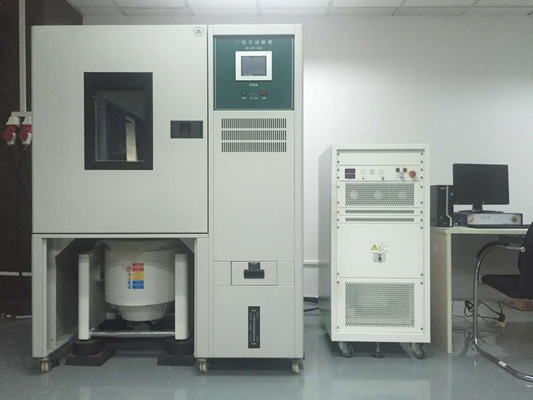

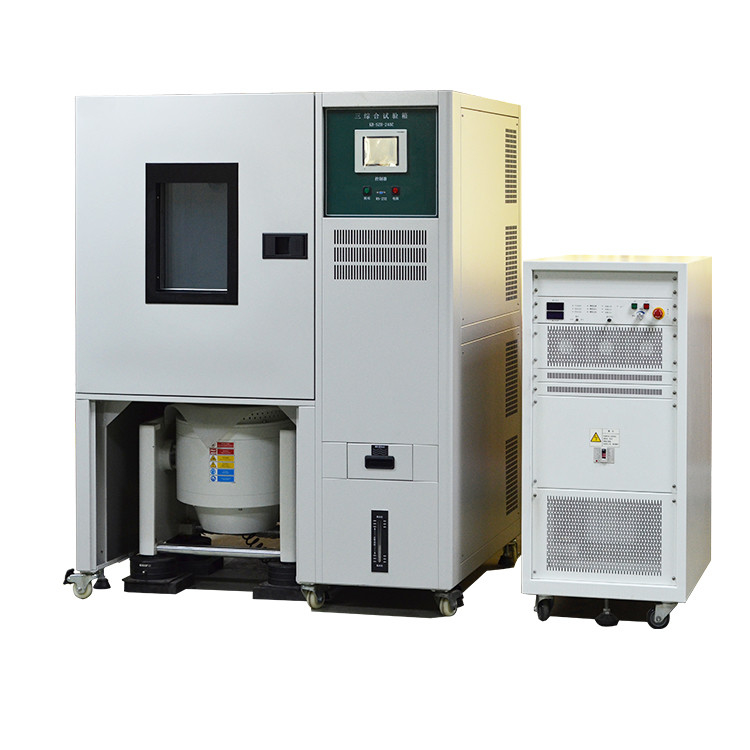

Temperature and Humidity Vibration Three Comprehensive Testing Chamber
Environmental Test Chamber.pdf
Temperature and humidity vibration three comprehensive environment test box
This product is applicable to aerospace products, information electronic instruments and meters, materials, electric, electronic products, electronic components in temperature, humidity, vibration, comprehensive environmental reliability test, reliability growth test, reliability identification test (RQC), product reliability acceptance (PRAT), routine test,
Product features of the integrated environment test box:
Use the German blog compressor.
Adopt ultra-high efficiency multi-chip turbulent plate heat exchanger.
Automatic adjustment of cooling capacity, using heating and cooling alternate control mode, can effectively save energy.
Leakage, anti-overtemperature, blast motor overload protection, compressor high pressure, overheating protection, etc.
Specification Model List:
1.Temperature and Humidity Range:
G:-20～150℃ ；45%～98%
Z:-40～150℃ ；45%～98%
D:-70～150℃ ；45%～98%
2. Stability: Temperature: ±0.5℃ Humidity: ±2.5% RH
3. Uniformity: Temperature: ≤±2℃ Humidity: ±3%RH
4. Test Machine Size: (can be customized)
| Inner Box Size(W×H×D) | Carton Size(W×H×D) |
| 40×50×40cm | 98×143×93cm |
| 50×60×40cm | 153×108×93cm |
| 50×60×50cm | 107×147×111cm |
| 50×75×60cm | 107×162×121cm |
| 60×85×60cm | 110×178×108cm |
| 60×85×80cm | 117×172×141cm |
| 100×100×80cm | 157×187×141cm |
| 100×96×100cm | 193×158×149cm |
| 100×100×100cm | 193×158×153cm |
Electromagnetic Vibration Table Specifications:
| Large Exciting Force (N) | Frequency Range (Hz) | Large Displacement (mm) | Large Attachment (KG) | Working Table Straight (mm) |
| 980 | 5～4500 | 25 | 70 | 150 |
| 1500 | 5～4500 | 25 | 70 | 150 |
| 2000 | 2～3000 | 40 | 140 | 230 |
| 3000 | 5～4000 | 25 | 120 | 150 |
| 3000 | 3～3000 | 40 | 140 | 230 |
| 6000 | 5～3000 | 25 | 200 | 200 |
| 6000 | 2～2000 | 51 | 300 | 230 |
| 10000 | 5～3000 | 51 | 150 | 240 |
| 20000 | 5～3000 | 51 | 300 | 320 |

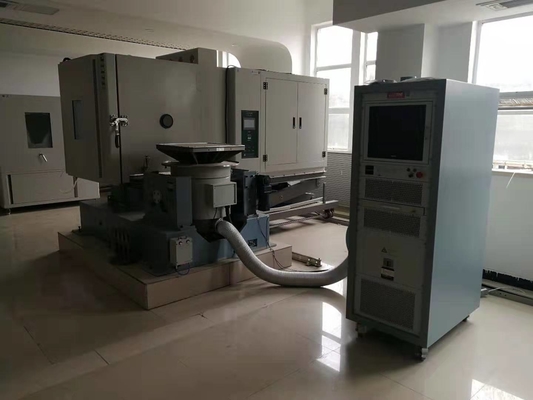

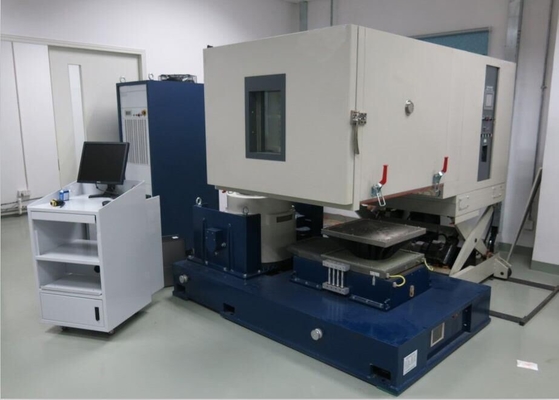

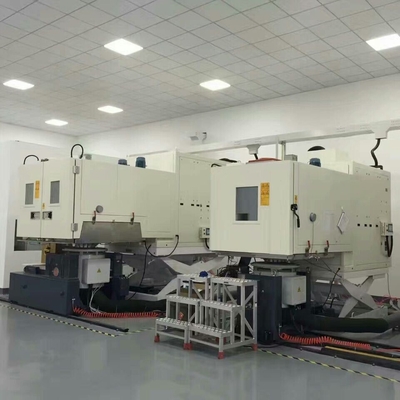

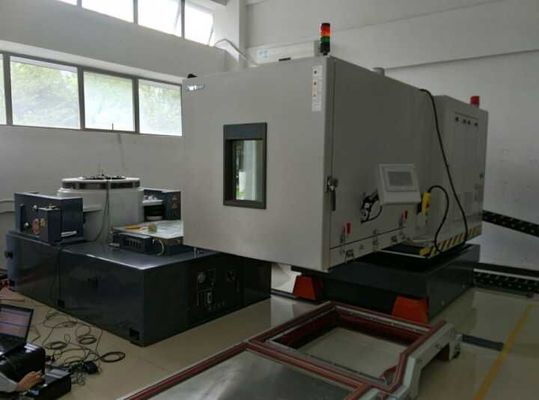

Temperature and humidity vibration comprehensive test box (vertical + horizontal)
constitute:
The three comprehensive test chamber is composed of the following parts: test chamber box, motion connection system, control system, refrigeration/Humidification system, heating/humidification system, air duct system, etc.
