| Name: | Popular Environmental Test Labs Programmable High Low Temperature Test Chamber Price | Temperature: | -40℃ To 150℃ |
|---|---|---|---|
| Fluctuate/ Uniformly: | ≤±0.5℃/.+2℃ To 3℃ | Heating-up Time: | -40℃ To 100℃ About 55min |
| Cooling Time: | 25℃ To -70℃ About 80min | Timer : | 0.1 To 999.9 (S,M,H)adjustable |
| Voltage: | AC380V±10%, 50±0.5Hz | Environmental Temperature: | 5℃ To 30℃ ≤85%R.H |
| Heating System: | Independent System, Nickel-chromium Alloy Electric Heating Type Heater | ||
| High Light: | Programmable Environmental Labs Test Chamber,AC380V Environmental Labs Test Chamber,50Hz Environmental Test Chamber |
||
Equipment Summary:
Temperature test chamber can test the material property in high and low temperature, such as electrical, electronic products, as well as their original devices, The testing equipment is mainly made according to the national standard and user-defined requirements, it simulate the environment to test proformance of material as well as other relevant characteristics of physical at low temperature or high temperature, Through testing to determine product performance whether it is still be able to meet the intended requirements.
Applicable Industries :
Applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care ... and so on.
Technical Parameter:
| Model | ZL-6019-80 | ZL-6019-100 | ZL-6019-150 | |
| Inner Size D×W×H | 40*50*40 cm | 40*50*50 cm | 50*60*50 cm | |
| Index | Temperature | -40℃ to 150℃ | ||
|
Fluctuate/ Uniformly |
≤±0.5℃/.+2℃ to 3℃ | |||
| Heating-up Time | -40℃ to 100℃ about 55min | |||
| Cooling Time | 25℃ to -70℃ about 80min | |||
| Control System | Controller | LED digital P,I,D, +S,S,R.microcomputer controller | ||
| Accuracy | Setting accuracy temperature ±0.1oC,directed accuracy temperature ±0.1℃,resolution ±0.1℃ | |||
| Sensor | Platinum resistance PT100Ω/MV | |||
| Heating System | Independent system, nickel-chromium alloy electric heating type heater | |||
| Cooling System | Totally enclosed air-cooled single-stage compression refrigerate mode / original from French "Taikang" / totally enclosed air-cooled re-compression refrigerate mode | |||
| Circulatory System | Temperature, low-noise, air-conditioning-type motor. Multi-vane centrifugal wind wheel | |||
| Material | Outer Material | High-quality carbon steel plate. Phosphide electrostatic spray treatment / SUS304 stainless steel hairline treatment | ||
| Inside material | SUS304 High-quality stainless steel light board | |||
| Insulation Material | Rigid polyurethane foam, ultra-fine glass fiber cotton | |||
| Insulation | Double-resistant high-temperature aging of silicone rubber seal | |||
| Standard collocation | A set of Multi-heated glass window attached lighting, testing product shelf 2 pcs, test leads holes (25,50 mm) 1 pcs | |||
| Protector | Leak current, short circuit, over temperature, motor overheating, over-pressure compressor, overload, over-current protection | |||
| Timer | 0.1 to 999.9 (S,M,H)adjustable | |||
| Voltage | AC380V±10%, 50±0.5Hz Three-phase five-wire system | |||
| Environmental Temperature | 5℃ to 30℃ ≤85%R.H | |||
|
annotation 1. Above data were measured at temperature (QT) 25℃ and no-load condition. 2. Can be customized non-standard-type high-low-temperature testing mechine according to uses requirements |
||||
Detailed Configuration And Software Features:
I. Structure and Material:
1. Inner box material: mirror stainless steel plate (SUS 304 thick 1.0mm);
2. Outer box material: stainless steel plate (1.0mm thick);
3. Insulation layer design: effectively avoid condensation on the top of the box;
4. Insulation layer: insulation layer (rigid Polyurethane foam, 100mm thick);

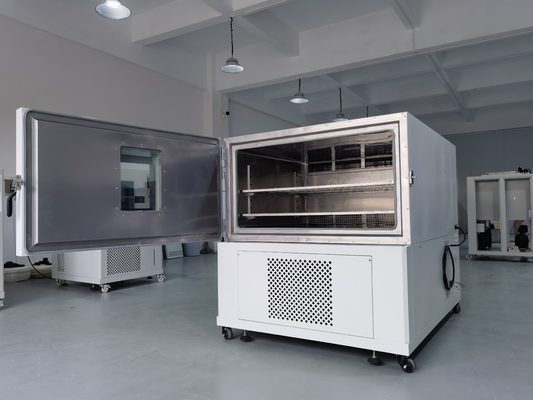

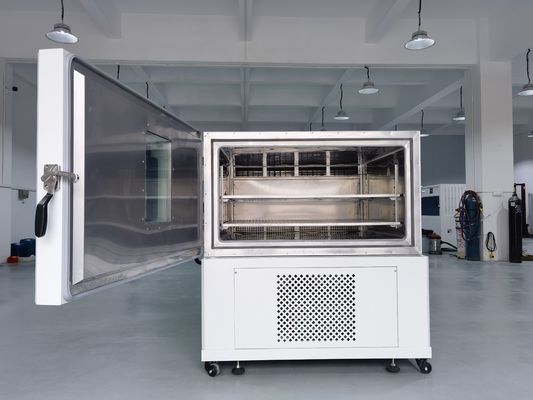

5. Box door: single piece door, single window, left opening. Flat recessed handle, back knob:SUS #304.Double insulation airtight tight, effectively isolate insulation from heat exchange inside and outside the box;
6. Observation window: three layers of vacuum glass, easy to observe the use of test products, size: 320X250X40mm.
7. Window anti-sweat: electric heating device, to prevent water condensation;
8. Lighting design: high brightness window lighting energy-saving lamps, easy to observe the test products;
9. Test hole: 50mm diameter on the left side of the body with a stainless steel hole cover and a silicone plug (optional multiple or 100mm);
10. Machine pulley: easy to move (to adjust the placement) and strong bolts (fixed position) supporting the use;
11. Box shelves: stainless steel SUS # 304 square perforated steel shelves 2 pieces and 2 sets of tracks (to adjust the spacing);
12. Machine weight: about 200KG
